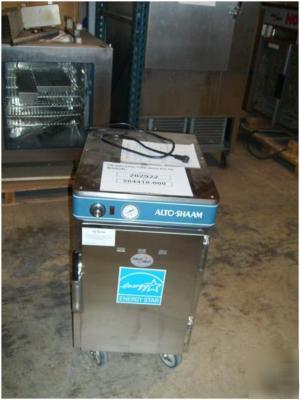

Alto-shaam 500-s/hd 120V
LOW TEMPERATURE HOT HOLDING CABINETS

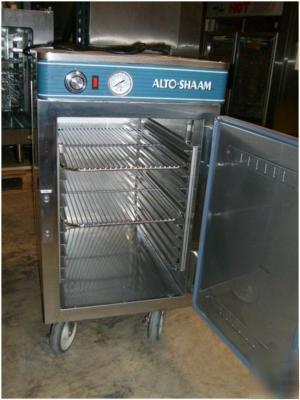

Single compartment holding cabinet with 22 gauge stainless steel door. The cabinet includes one (1) ON/OFF power
switch, one (1) adjustable temperature knob with a temperature range of 60 to 200 F (16 to 93 C); one (1) indicator
light; and one (1) digital display. Included are two (2) chrome plated side racks (230V models use stainless steel) with
eleven (11) pan positions spaced at 1-3/8" (35mm) centers, two chrome plated wire shelves, and one (1) set
of 3-1/2" (89mm) heavy duty casters 2 rigid and 2 swivel with brake.
MODEL 500-S/STD: Holding cabinet with magnetic 20 gauge stainless steel exterior casing.
MODEL 500-S/HD: Holding cabinet with non-magnetic 20 gauge stainless steel exterior casing.
Solid state electronic control option simplifies temperature setting and
has a clear, easy-to-read LED display and includes our patented
SureTemp heat recovery system. SureTemp reacts immediately to
compensate for any loss of heat whenever the door is opened.
Electronic control is also available with six independent multiple timers
for each compartment to facilitate first-in, first-out concept.
HALO HEAT a controlled, uniform heat source that gently
surrounds food for better appearance, taste, and longer holding life.
Holds hot food hot...meat, poultry, fish, potatoes, casseroles, vegetables,
Close temperature tolerance and even heat application maintain ideal
serving temperatures throughout the cabinet.
Available in reach-in or pass-through design.
Casters provide easy mobility.
Can be stacked with an identical unit or cook/hold oven to save space.
Specify pass-through doors as a
cannot have all doors hinged on the
software provides the ability to monitor,
store, and print all relevant data.
Optional HACCP with Kitchen Management
web-based software provides the ability to
program, control, monitor, and store all
500-S with 500-S holding cabinet,
500-TH-II or 500-TH/III cook/hold oven.
Order appropriate stacking hardware.
Indicate top and bottom placement.
.S .A. DUE TO ONGOING PRODUCT IMPROVEMENT, S P ECI F ICAT IONS ARE SUB J ECT TO CHANGE WI THOUT NOT ICE .
17-7/8" (454mm) 25-1/2" (648mm)
*32-1/16" (814mm) - with optional 2-1/2" (64mm) casters
*34-5/16" (874mm - with optional 5" (127mm) casters
*34-11/16" (880mm) - with optional 6" (152mm) legs (approximate)
56-5/8" (1438mm) - Pass-Through Option
42-15/16" (1091mm) - with optional bumper
32-7/8" x 17-7/8" x 25-1/2" (835mm x 454mm x 648mm)
20" x 14-3/8" x 21-1/4" (508mm x 366mm x 540mm)
Five (5) 20" x 12" x 2-1/2" 530mm x 325mm x 65mm
Four (4) 20" x 12" x 4" 530mm x 325mm x 100mm
Ten (10) 10" x 12" x 2-1/2" 265mm x 325mm x 65mm
Eight (8) 10"x 12" x 4" 265mm x 325mm x 100mm
Bumper, Full Perimeter 5006782
Drip Pan, 1" (25mm) deep PN-2122
Legs, 6" (152mm), Flanged (SET OF FOUR) 5004863
#9015 FOR APPLICABLE PART NUMBERS
Probe, Internal Temperature (ELECTRONIC CONTROL) AVAILABLE
Security Panel with Lock 5006787
Shelf, Stainless Steel, Flat Wire SH-2326
(AGCY) 1 60 8.3 1.0 NEMA 5-15P,
(AGCY) 1 60 4.2 1.0 NEMA 6-15P,
X 35" X 41" (889mm x 889mm x 1041mm)
This appliance must be installed level. It must not be installed in any
area where it may be affected by steam, grease, dripping water, high
