100KV dc high voltage multiplier 8 stage stack tesla

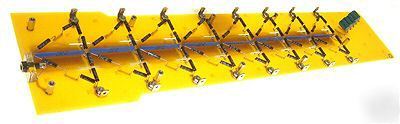

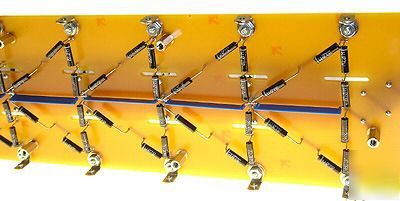

NICE, FULL WAVE, EIGHT STAGE MULTIPLIER STACK,
CONSISTING of 8 HV CAPACITORS and 8 HV RESISTORS and 64 HV RECTIFIERS.

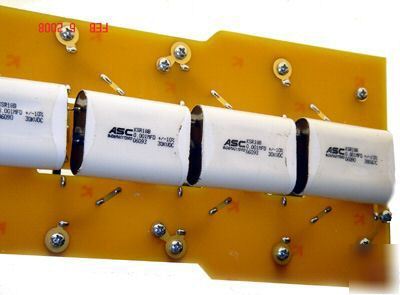

Caps are .001uF (1000pF) @ 15,000 VDC, Resistors are 400 meg Ohm, 5%, 20KV, 2 watt,
Diodes are type: HVCA/2CL2FM, 20KV PIV @ 0.1Amp
PERFECT for your COCKCROFT WALTON MULTIPLIER OR MARX GENERATOR.
Overall size: 25" Long x 4.4" Wide x 1.5 High"
Ultra compact design should be submersed in mineral oil to obtain maximum output.
ALL USA MADE AND IN EXCELLENT CONDITION.
