4 channel camera complete wireless surveillance system
4 Channel Camera Complete Wireless Surveillance System
4 Channel Wireless Digital Video Recording Complete System
This surveillance system allows you to install up to 4 wireless cameras to digitally record all activity. This DVR has full networking capability and uses an embedded DVR which allows you to view live video on the Internet. This complete surveillance system includes cameras, cables, monitor, mouse and remote. All you need to do is mount the 4 cameras and provide power to them, connect the receivers to the dvr, connect the dvr to the monitor and you are ready to start recording. This is a great all in one 4 channel wireless surveillance system for any home or business.

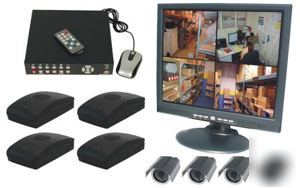

This complete surveillance system includes the following:
(1) Stand Alone 4 channel DVR.
Embedded DVRs do not use a Windows operating system. In fact, there is no software at all on the hard drive. All functions are contained (embedded) on software encoded computer chips. View in real time. Easy setup. The Embedded series Digital Video Recorders (DVR) operate just like a VCR. However, they have many features that make them more powerful and easier to use than even the most advanced VCR.
These DVRs converts analog video (NTSC or PAL) to digital images, and records them on a hard disk drive. Using a disk drive allows users to access recorded video almost instantaneously without having to rewind or fast forward tape. There is no need to adjust tracking. You can freeze frames and forward or rewind without image streaking or tearing. Digital video can be indexed by time/date or events, and users can instantly view video after selecting the time/date or event. The rear panel provides convenient connection for video and audio input/output.
Video Input = 4 ch composite BNC
Video Output = VGA & Composite BNC
Recording Resolution = 720x240 (NTSC), 360 x 240 (NTSC)
Dimensions = 8.5" (L) x 8" (D) x 1.5" (H)
(4) Day/Night Color Wireless Bullet Cameras
These color bullet cameras have a high quality digital CCD chip that automatically switches from color to black & white in low light conditions. To enhance low light visibility it has 30 built-in high infrared illuminators. Fully weatherproof.
- Resolution 420 TV Lines / 470 TV Lines
- Min. Illumination 1 Lux f2.0, 0 Lux IR ON
- Current Consumption 110mA (IR Off)
Receive up to 4 channels of wireless video from any of our 2.4 GHz cameras/transmitters. Sleek design with built-in directional antenna and manual channel switcher. Includes RCA video outputs.
Supports CCTV Camera input with a wide viewing angle. Sharp images at a maximum resolution of up to 1280 x 1024 pixels
Resolution (H x V): 1,280 x 1,024 SXGA
Resolution compatibility: VGA, SVGA, XGA
Pixel pitch (H x V): 0.088 x 0.264mm
Speaker (built-in, stereo): 10W x 2
