30 ton minster “pulsar” high speed presses (#7579)

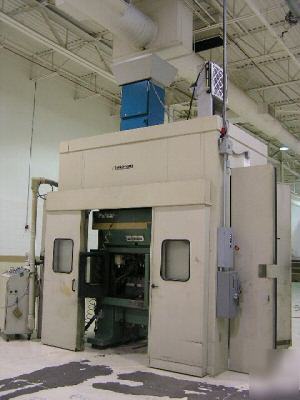

(4) 30 TON MINSTER PULSAR HIGH-SPEED, STRAIGHT SIDE PRESSES (M# 7579)
Capacity: 30 Ton @ .040 Off Bottom
Shut Height Over Bolster (Adjustable): 7.25 - 9
Shut Height Over Bed (Adjustable): 11.25 - 13
Bolster Adjustment: 1.75 (Motorized)
Bolster Area: 30 L-R x 21 F-B x 4 Thick (T-Slotted)
Slide Face Area: 34.5 L-R x 12 F-B (T-Slotted)
Speeds (Variable): 100 - 1100 SPM
Hydraulic Clutch & Brake with Selector Controls
25 HP Eddy Current Main Drive Motor
Operator Console Control (Free Standing)
Noise-Tamer Sound Enclosure with Mist-Tamer & Radiator to cool oil.
Automatic Recirculating Lubrication System
Vamco MV6 Feeder, S/N: MV624515116R
Feed Rater Per Minute: to 1500 / Strokes Per Minute: to 1500
Feed Length Min. - Max.: .052 - 4.0 / Material Width Max.: 6
Material Thickness Max.: .062
Approximate Dimensions (Press Only): 90 LR x 60 FB x 122 H
Approximate Dimensions (Press with Enclosure): 176 LR x 96 FB x 252 H
Approximate Weight: 20,000 Lbs.
Inspect under power in our Detroit area warehouse.
Warranty and Leasing Options Available
