Vx-6R yaesu vx 6R handheld receiver 3 band transmiter

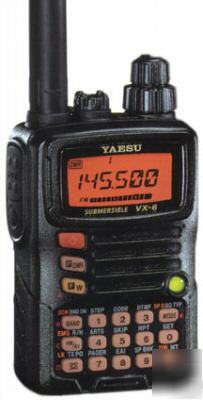

YAESU VX-6R AMATEUR HAND-HELD FM TRANSCEIVER
The VX-6R is an ultra-rugged 144-430 MHz FM Hand-Held featuring wide receiver coverage, JIS7 submersibility, the Yaesu-exclusive Emergency Automatic Identification (EAI) system, and ultra-simple keyboard access to important features.
New on the VX-6R is the One-Touch Direct Memory Recall feature, that allows you to recall ten favorite memories with a single button press, just like on your car stereo.
The VX-6R comes equipped with a high-capacity 1400 mAh Lithium-Ion Battery Pack.
(USA Version) 1.8 - 30 MHz (SW Band),
30 - 76(59) MHz (50 MHz HAM Band),
137 - 174 MHz (144 MHz HAM Band),
420 - 470 MHz (430 MHz HAM Band),
470 - 800 (729) (UHF TV Band),
(ACT2 Band;USA Cellular Blocked)
5 ppm @ 14 F to 122 F ( 10 C to +50 C)
Nominal: 7.4 V DC, Negative Ground
Operating: 5.0 ~ 16.0 V DC (EXT DC Jack)
11.0 ~ 16.0 V DC (EXT DC Jack while Charging)
1.5 A (1.5 W TX, 222 MHz: USA only)
4 F to 140 F ( 20 C to +60 C)
2.3 "(W) x 3.5 "(H) x 1.1" (D) (58 x 89 x 28.5 mm)
(w/o knob, antenna, and belt clip)
9.5 Oz (270 g) with FNB-80LI, and antenna
At least 60 dB down (@ High power)
At least 50 dB down (@ Low 2 and Low 1 power)
AM, NFM: Double-Conversion Superheterodyne
WFM: Triple-Conversion Superheterodyne
1.0 V TYP for 10 dB SN (1.8-30 MHz, AM)
0.35 V TYP for 12 dB SINAD (30-54 MHz, NFM)
0.5 V TYP for 12 dB SINAD (54-76(59) MHz, NFM)
1 V TYP for 12 dB SINAD (76(59)-108 MHz, WFM)
1.5 V TYP for 10 dB SN (108-137 MHz, AM)
0.2 V for 12 dB SINAD (137-140 MHz, FM)
0.16 V for 12 dB SINAD (140-150 MHz, FM)
0.2 V for 12 dB SINAD (150-174 MHz, FM)
0.5 V TYP for 12 dB SINAD (174-250 MHz, WFM)
0.5 V for 12 dB SINAD (300-350 MHz, NFM)
0.2 V for 12 dB SINAD (350-420 MHz, NFM)
0.18 V for 12 dB SINAD (420-470 MHz, NFM)
1.0 V for 12 dB SINAD (470-540 MHz, WFM)
1.0 V TYP for 12 dB SINAD (580-800 MHz, WFM)
0.5 V TYP for 12 dB SINAD (800-999.990 MHz, NFM)
AM, NFM: 12 kHz/35 kHz ( 6 dB / 60 dB)
WFM: 200 kHz/300 kHz ( 6 dB / 20 dB)
200 mW @ 8 for 10 % THD (@ 7.4 V)
400 mW @ 8 for 10 % THD (@ 13.8 V)
1x FNB-80LI 1400mah Battery Pack.
1x NC-72 Charger Include AU Adaptor
