Topcon automatic level model at-G2 with case #100140

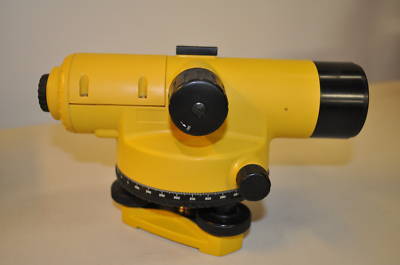

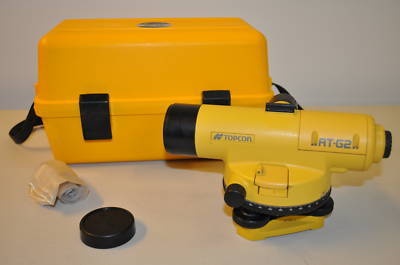

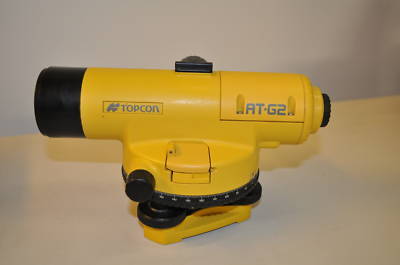

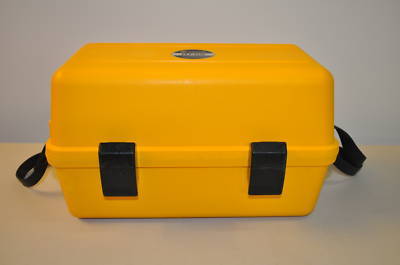

Topcon Precision 32 Power Engineers, Surveyors Automatic Level model AT-G2 with hood, cap and the case. #100140 32x Magnification, 0.7 mm accuracy in 1 km double run leveling. Magnetically-damped compensator affords automatic leveling action. Waterproof telescope. Clampless fine horizontal adjustments. Sighting collimator. Image: Erect; Objective aperture: 1.8"; Magnification: 32x; Field of view (at 100): 1 20'; Resolving power: 2.5"; Minimum focus: 3.3'; Stadia ratio: 1:100. Horizontal Circle - Diameter: 3.5"; Reading: 1 . Compensator - Damping system: Magnetic; Setting accuracy: 0.3"; Range: 15'. Sensitivity - Circular level: 8'/2mm. Accuracy - 1 km dbl. run leveling: 0.7mm. Weight: Instrument 4.1 lb/ case 2.9 lb Tripod - 5/8" x 11
