Monroe electronics program timer 3000R-149 R149
Monroe Electronics Program Timer

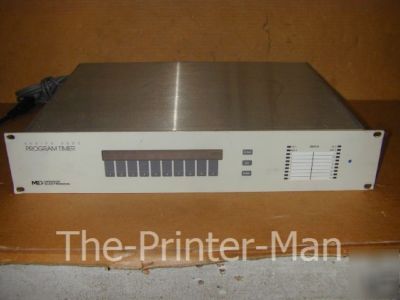

Monroe Electronics Program Timer 3000R-149 R149
Timer capable of 16 outputs, 999 events upto 364 days in advance. Control everything all year!
Guaranteed to work as described, returnable if not as described.
Manufacturers data: (if blank, then no data was found)
Data sheet: http:// /CATV_prodpdf/r149_ds.pdf
User Manual: http:// /CATV_manuals/r149_m.pdf
The Model R149 is a timing control unit with applications in the cable television and broadcasting industries. It controls 16 open-collector output devices in response to time-programmed events. Use these output devices to control audio/video relays, switchable modulators, processors, and receivers in headend locations. Other applications include control of uplink encoders, downlink decoders, video-cassette machines, and message generators.
Program up to 999 separate events to occur at a specific time, up to 364 days in advance. An event may be stored as a specific month/date/time, or a particular day of the month (every Monday for the month of July), or any day (every Friday for the year). Program these events using soft keys and an alphanumeric display on the front panel, or program events remotely via a serial commnications port, modem or LAN using SYNOPSIS 2 applications software (included) to upload, download, and edit all program timing and switching information from an undedicated IBM-compatible PC.
The Model R149 is expandable to control up to 48 total output devices. Up to two expansion modules can be plugged into the rear of the Model R149. The expansion modules available include
Model 617B Stereo A/V Switch Module (4x1 or dual 2x1 vertical interval switching )
Model 619 Open-Drain Switch Module (16 outputs)
