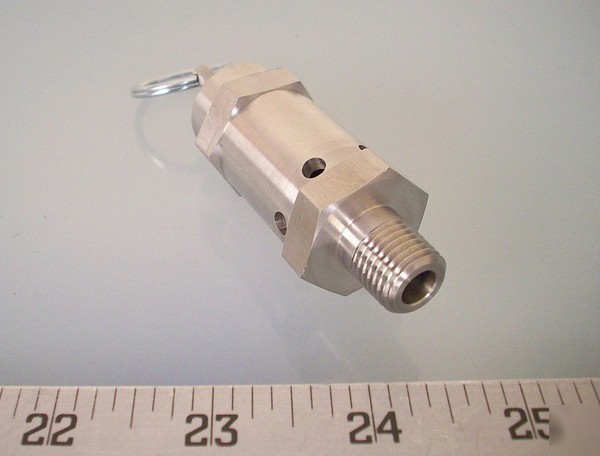

Generant high pressure relief valve 1/4” npt hprv
Generant HIGH PRESSURE RELIEF VALVE 1/4 NPT HPRV
* HPRV - Male x Female, Inline
* SS - 316 SS Stainless Steel
* T - Teflon -320 F to 400 F (-220 C to 204 C)
http:// /high_pressure_relief_valves.htm
http://www.herose.co.uk/LiteratureRetrieve.aspx?ID=24096
The HPRV Series Relief Valve provides accurate crack pressure
with zero leakage up to 98% of nominal set pressure. When properly
specified, this factory preset, tamper proof design, is ideally
suited for most any liquid or gas application. Encapsulating the
O ring seal within the poppet eliminates seal extrusion and cold
flow characteristics. By guiding the poppet into the body, a line of
contact seal is ensured and at high crack pressure settings, the
O ring is protected by a metal-to-metal stop between the poppet
and the body. High flow design, combined with narrow band interchangeable
springs, minimizes system pressure rise as flow
demand increases. Available in brass, carbon or stainless steel,
inline or discharge to atmosphere. Valves can be supplied with a
