Voltage controlled oscillator, 500 to 1000 mhz, VCO1K

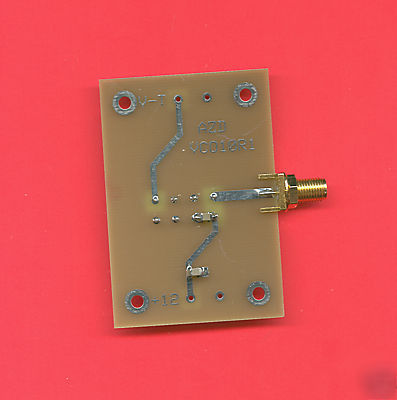

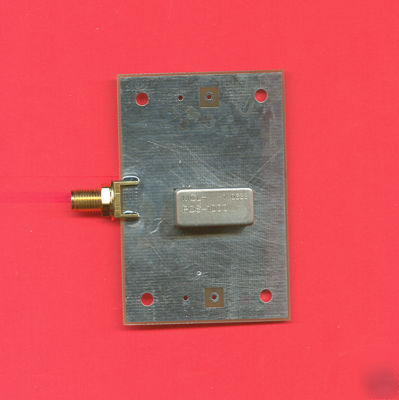

This item (image 1, and 2) is a wide-band voltage tuned oscillator assembly that uses the Mini-Circuits POS-1000W to produce an output power greater than 7 dBm at frequencies from 500 to 1000 MHz. Click on this URL, http://sss-mag.com/index.html, for additional information on 868 to 928 MHz. Click on this URL, http:// /vco1k.htm, to view power / frequency plots, component type / location, and a typical mounting configuration. To view information on a suggested VCO Driver Assembly, click on this URL, http:// /vcotc.htm. A swept frequency measurement application that can use this oscillator can be viewed by clicking on this URL, http:// /sms2c.htm .
