> New bodine BDL700 flourescent emergency ballast

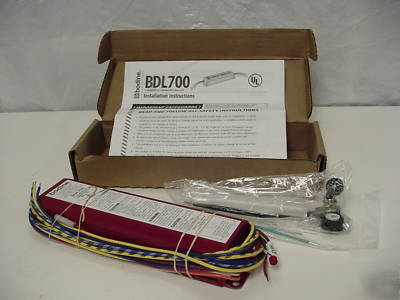

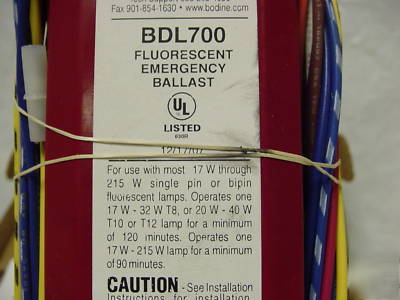

New bodine BDL700 flourescent emergency ballast
2-hour emergency illumination;
Two-hour emergency illumination;
9.4"2.4"1.5"BSL23EMERGENCY LED DRIVER9.4"BDL700FLUORESCENT EMERGENCY BALLAST
High-Temperature, Maintenance-Free
Ballast Temperature Rating (Ambient)
When AC power fails, the BDL700 immediately switches to the emergency mode, operating one lamp at a reduced lumen output for a minimum of 90 minutes. Two-hour duration may be selected with one 17 - 32 W T8 or one 20 - 40 W T10 or T12 fluorescent lamp. When AC power is restored, the emergency ballast automatically returns to the charging mode and, using a patented circuit, delays AC ballast operation for approximately 3 seconds to prevent false tripping of the AC ballast end-of-lamp-life shutdown circuits.
The BDL700 does not affect normal fixture operation and may be used with either a switched or unswitched fixture. If a switched fixture is used, an unswitched hot lead must be connected to the emergency ballast. The emergency ballast must be fed from the same branch circuit as the AC ballast. The BDL700 may be installed inside, on top of or remote from the fixture. The emergency ballast may be remotely installed up to half the distance the AC ballast manufacturer recommends remoting the AC ballast from the lamp or up to 50 feet, whichever is less. Installation is not recommended with fixtures where the ambient temperature may fall below 0 C.
The BDL700 has been tested by Underwriters Laboratories in accordance with the standards set forth in UL 924, "Emergency Lighting and Power Equipment," and is UL Listed for factory or field installation. Emergency illumination time exceeds the National Electrical Code (NEC), Life Safety Code (NFPA-LSC) and UL 90-minute requirements.
Emergency ballasts can be modified to accommodate special voltages, frequencies and longer run times.
CSA Certified model also available.
Depending on the wattage and type of lamp selected, the BDL700 produces 600 to 700 lumens initial emergency light output. During emergency illumination, one lamp is illuminated, even if installed with a multi-lamp AC ballast. Emergency lumen output will be less with a compact fluorescent lamp.

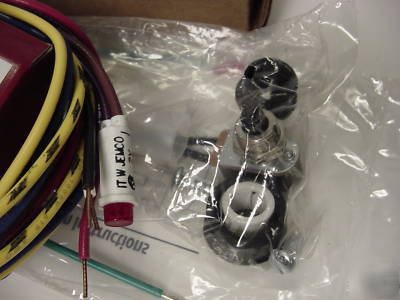

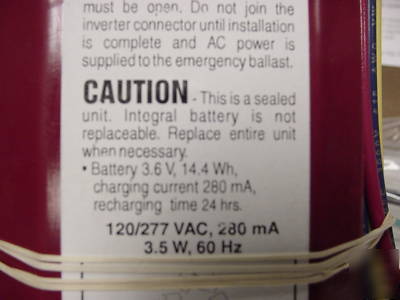

Emergency lighting shall be provided by using a standard fluorescent fixture equipped with a Philips Bodine BDL700 emergency ballast. This emergency ballast shall consist of a high-temperature, maintenance-free nickel-cadmium battery, charger and electronic circuitry contained in one 9 3/8" x 2 3/8" x 1 1/2" red metal case. A solid-state charging indicator light to monitor the charger and battery, a single-pole test switch and installation hardware shall be provided. The emergency ballast, using a patented circuit, shall delay AC ballast operation for approximately 3 seconds to prevent false tripping of AC ballast end-of-lamp-life shutdown circuits. The emergency ballast shall be capable of operating one 17 - 215 W (2 - 8 ) T8, T10 or T12 or (4-pin) long compact at reduced illumination in the emergency mode for a minimum of 90 minutes or one 17 - 32 W T8 or one 17 - 40 W T10 or T12 at reduced illumination in the emergency mode for a minimum of 120 minutes. It shall be suitable for indoor and damp locations and for sealed & gasketed fixtures, including fixtures rated for wet locations. The BDL700 shall have 3.5 Watts of input power and a 14.4 Watt-hour battery capacity and shall comply with emergency standards set forth by the current NEC. The emergency ballast shall be UL Listed for installation inside, on top of or remote from the fixture and shall be warranted for a full three years from date of purchase.
