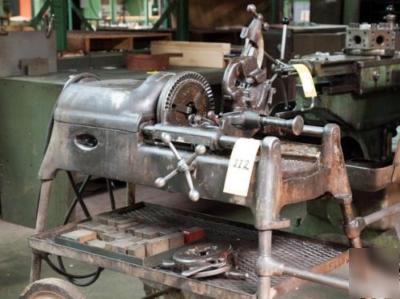

Ridgid power pipe threader threading machine 535
* Ridgid pipe threading machine.
* Item is in good working order.
The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir make the 535 ideal for longer uninterrupted threading. The 535 features a high clearance carriage making the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional.
Generous top cover for keeping tools and fi ttings handy.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geared threaders Models 141 and 161.
Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
Length gauge for quick, accurate cut-off.
Approved by CSA to CSA and UL standards (115V only).
1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
1/2 HP, single-phase, 115V, 50/60 Hz, 15 amp reversible universal motor. (36 RPM)
FOR/OFF/REV and Integral safety foot switch.
Speed Chuck with replaceable rocker-action jaw inserts (3).
Cam-action, turns with chuck.
self-centering, full-floating. Two models available:
One Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm).
Two Optional. No. 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart.
36 RPM standard (no load), 54 RPM model also available.
5-flute cone, RH, 1/8"-2" (3mm-50mm).
Self-priming gerotor oil pump.
RH/LH combination reamer available.
