Myford model MG12-hpt hydraulic cylindrical grinder

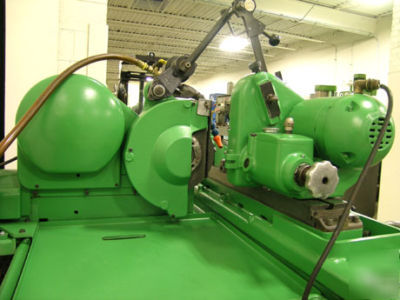

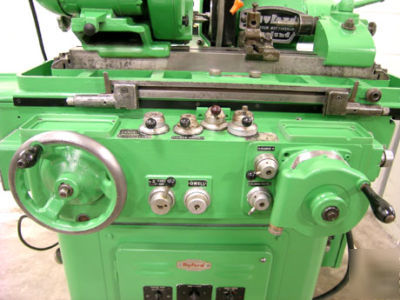

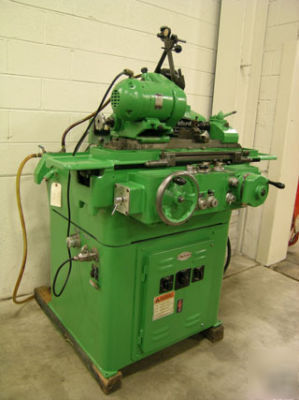

Liberty Machinery Company You are looking at(1) USED - 5" X 12" MYFORD MODEL MG12-HPT "PRECISION" HYDRAULIC PLAIN CYLINDRICAL GRINDER WITH AUTOMATIC PLUNGE AND TRAVERSE CYCLING* Serial No. HP76919Condition - USEDNew - 1970 SPECIFICATIONS:Grinding Diameter - Maximum 3"
Table Travel - Maximum 13-3/4"
Table Swivels Either Way 10 Degrees
Table Travel per Revolution of Handwheel 0.44"
Hydraulic Table Traverse 0 - 120" IPM
Dwell (Carriage) 0 - 8 Seconds
Total Travel by Feedscrew 3-7/8"
Hydraulic Rapid Retraction 1-1/8"
Infeed per Revolution of Handwheel 0.025"
Wheelhead Graduation (Infeed) 0.0001"
Fine Feed to Dead Stop 0.000025"
Plunge Infeed Rate per Minute 0.0025" - .125"
Automatic Infeed Rate 0.0001" - .001"
Grinding Wheel (Recessed) 10" x 1" x 3"
Wheel Spindle Speeds (2) 2,200 & 2,500 RPM
Capacity thru Standard Draw Tube 3/4"
Collet Capacity - Maximum 3/4"
Automatic Plunge and Traverse Cycling
Automatic Plunge Infeed with Depth of Feed Control
Variable Dwell at each Table Movement
Rapid Wheelhead Advanced/Retraction
Quick Acting Lever Type Collet Closer

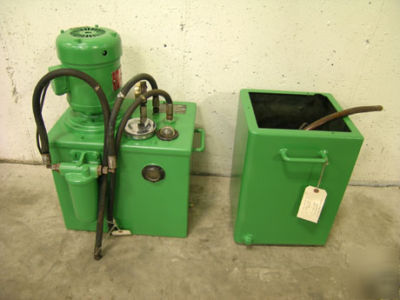

External Hydraulic Pump & Tank
Arnold Swing Down Sizing Gage, Table Mount Wheel Dresser, Wheel Flange
