Asco EF8342G3 EF8342G003 solenoid valve 4-way 3/8" 120V
ITEM: ASCO Model EF8342G3 (Also listed by ASCO as part# EF8342G003), 4-Way 2-Position (4/2) General Service Solenoid Valve, 3/8" Female Pipe Size Connections, Brass Body, 120V AC 60 Hz Coil, Explosion Proof and Watertight Solenoid NEMA 3, 3S, 4, 4X, 6, 6P, 7 & 9 Hazardous Location Solenoid Enclosure, Class I Div 1 Group A, B, C & D, Class II Div 1 Group E & F, UL Listed, CSA Certified, CE Mark.
Pipe Size: 3/8" NPT, 3/16" Orifice, Cv=0.70
Construction: Brass Body, NBR Seals
Pressure (Min-Max): 0-125 PSI Air, 0-100 PSI Water, 0-100 PSI Light Oil
Enclosure Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 7 & 9 Hazardous Location
Coil Rating: 120V AC 60 Hz, 20.1 watts
Media Temperature: 160 F maximum

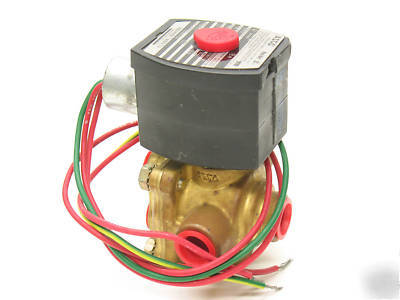

CONDITION: Surplus NEW, no box, w/ a broken-off piece (see picture, top right side) on the top cap that fits over the solenoid (NOTE: the top cap fits loosely over the solenoid as a sort of spacer to hold it down and is NOT part of the solenoid itself and the solenoid itself is NOT damaged and valve operation is NOT affected).
