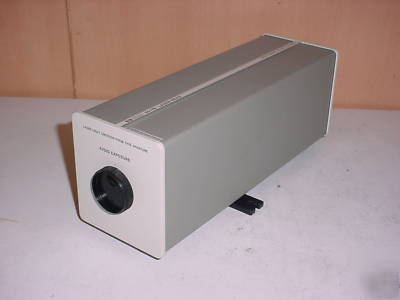

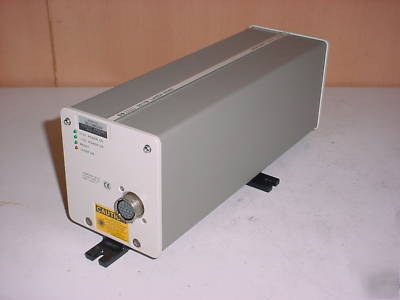

> Agilent/hewlett packard laser head 5517B .3 - .4MW
Agilent/hewlett packard laser head 5517B .3 - .4MW
* Type: Helium-Neon, Continuous, Two-Frequency
* Magnetic Field Strength (Non-Operating): Minimum Beam Power Output: 120 microwatts
* Beam Diameter: 6 millimeters (0.25 inch) typical
* Vacuum Wavelength Accuracy (3 sigma, lifetime): 0.1 ppm
* Vacuum Wavelength Stability (typical 1 hour): 0.002 ppm
* Vacuum Wavelength Stability (typical lifetime): 0.02 ppm
* Nominal Vacuum Wavelength: 632.99137 nanometers
* Power Input Requirements: +15 Volts 0.3 Volts at 2.2 Amperes maximum
* Heat Dissipation: 23 watts (during operation), 35 watts (during warmup)
* Warmup Time: less than 10 minutes (4 minutes typical)
* Clearance Required for Cabling: 10.16 cm (4 in) beyond back
* Safety Classification: Class II Laser Product conforming to U.S. National Center for Devices and Radiological Health Regulations 21 CFR 1040.10 and 1040.11.
* Reference Frequency: 1.9 - 2.4 MHz
This item appears be in good functional condition. *No guarantee of laser lifetime after delivery. You will receive an item similar to the one in the photograph. We have a quantity of lasers and laser accessories available. See our other listings
