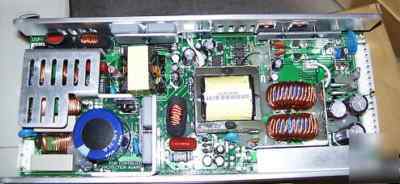

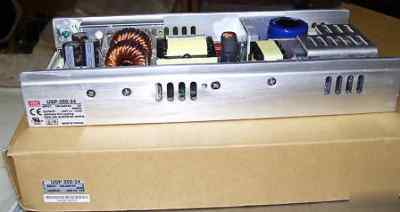

Mean well usp-350-24 24 volt dc 350 watt power supply
Mean Well MW USP-350-24 24 Volt DC 350 Watt
3.3V: 0.94/230VAC ; 5V~48V: 0.95/230 VAC, 0.98/115VAC at full load
2000ms, 100ms/230VAC 4000ms, 100ms/115VAC at full load
3.3V: 12ms/230VAC ; 5V~48V: 16ms/230VAC 16ms/115VAC at full load
3.3V & 5V: 105~120% rated output power; 12V~48V: 105~130% rated output power
Protection type:Constant current limiting, recovers automatically after fault condition is removed
Protection type: Hiccup mode, recovers automatically after fault condition is removed
80 C (3.3V~48V)(TSW1:Detect on heatsink of power transistor); 80 C 5 C(3.3V~15V),75 C 5 C(24V,48V)
(TSW2:Detect on heatsink of power diode) Protection type:Shutdown o/p voltage with auto recovery
-10~+65 C (refer to output load derating curve)
10 ~ 500Hz, 2G 10min./1 cycle, 60min. each along X,Y,Z axes
106.3K hrs min. MIL-HDBK-217F (25 C)
Compliance to EN55022 (CISPR22) Class B
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, light industry level, criteria A
