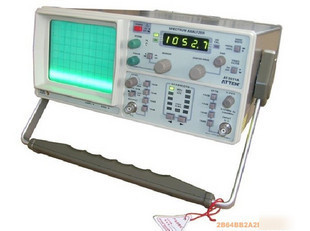

New ATTEN AT5011 (A) Spectrum Analyzer 1050MHz 5011A
AT5011A spectrum analyzer frequency range of 0.15 MHz ~ 1050MHz; center frequency set with a coarse to fine-tune, coupled with 100kHz / grid ~ 100MHz / grid consisting of the choice of sweep width of the frequency-domain measurements. The center frequency display window is a 4-bit half-LED display, optional reading or mark as the center frequency of the frequency readings. This instrument applies to product development of pre-testing, a third party for pre-certification prior to the formal test assessment, high-frequency probe with AZ530 series (high-impedance probe AZ530-H; electric field monopole probe AZ530-E; magnetic near-field probe AZ530 -M) for the early prototyping circuit board and the original prototype stage, the launch of cable and printed circuit board, etc. "hot spots" of electromagnetic compatibility testing and assessment of the level.
* Frequency range: 0.15 ~ 1050MHz
* 4-bit semi-digital display (center frequency, 0.1MHz resolution)
-100 ~ +13 DBm amplitude range, 20KHz, 400KHz IF filter bandwidth and 4KHz Video
* Tracking generator (only AT5011 +)
Output Range: +0 ~-50dBm (50 )
Frequency Measurement Extension
* Instruments with Frequency Expander (AT5000-F1) to measure the frequency expansion induced 2000MHz (qualitative measurement), can only be used for input channel expansion, expansion can not be used to track the source, measuring range of 1050 MHz ~ 2050 MHz.
* Instruments with Frequency Expander (AT5000-F2) to measure the frequency expansion induced 3000MHz (qualitative measurement), can only be used for input channel expansion, expansion can not be used to track the source, measuring range of 2050 MHz ~ 3050 MHz.
Electromagnetic Compatibility Test (EMC)
* A variety of electronic devices measuring emission of harmful electromagnetic waves function.
* Conducted interference with the AT-166 interface, the product being tested conducted interference tests.
* With the electric field monopole probe AZ-530-E of the products being tested radiated interference tests.
* With the magnetic field probe AZ-530-M of the products being tested sources of interference within the circuit to be tested.
* With the high-impedance probe AZ-530-H on the product being tested to repair the internal circuit test.
Spectrum analyzer output of FM detector signal, analyze the non-encrypted content of radio stations can be used to identify the influence of radio noise signals, the radio station from the air in time for analysis, which has been testing equipment to determine the normal operation and measurement resolution three radio stations in some unknown activity.
Point frequency sweep function
Point Frequency: Set the spectrum analyzer center frequency, and then sweep width of the letter "0" Hz, the signal output for the point-frequency signal.
Sweep: Instrument tracking signal source capabilities with the formation of the tested products pass band of the sweep, the measured product series with the signal trace the source (output) and instrument detection channel (input), and then set the required frequency bands can be detected.
For example: the need for tested products, 750MHz 10 MHz to sweep testing. Only the center frequency set to 750MHz, sweep width is set to 2MHz / grid can test (2MHz / grid when the CRT screen is displayed as 20MHz). In the CRT display shows the scanned curve.
Scalar network functions (reflection bridge) (optional)
Spectrum Analyzer AT5011 + Tracking the signal source to achieve insertion loss measurement, isolation measurement, coupled with scalar network testing device uses can effectively measure the reflection loss and VSWR parameters of the products being tested impedance matching plays an important role. Measurement of network analysis to achieve the majority of functional tests.
