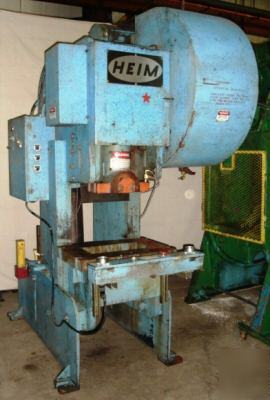

55 ton heim obi press
55 Ton, HEIM Single Crank, No. 5GA-F, 3" Str, 17" SH, 120 SPM, 18" x 28" Bed, A.C., Clean, Works perfect
MODEL..................................5GA-F
SERIAL NUMBER..........................Year: 1980
Capacity...............................55 Tons
Stroke.................................3"
Shut Height (SDAU).....................17"
Adjustment.............................4"
Strokes Per Minute.....................120
Area Of Bed............................18" x 24"
Opening In Bed.........................9" x 16"
Opening Through Back...................18"
Face Of Ram............................10" x 15"
Depth Of Throat........................10"
Approximate Weight.....................5800 Lbs.
