3.5" cincinnati gilbert #t table type horz. table mill

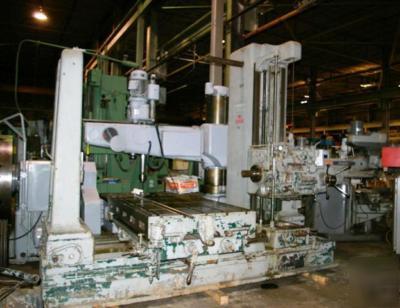

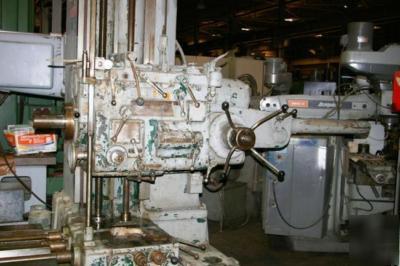

3-1/2" CINCINNATI GILBERT MODEL T TABLE TYPE HORIZONTAL BORING MILL
MANUFACTURED 1946, RACO Stock Number R015622
TABLE SIZE - ( WORKING AREA ) - 38" X 60"
TABLE TRAVEL - ( CROSS ) - 48"
TABLE TRAVEL - ( LONGITUDINAL ) - 42"
HEAD TRAVEL - ( VERTICAL ) - 48"
MAXIMUM DISTANCE SPINDLE TO OUTBOARD - 84"
SPINDLE SPEEDS - ( 24 ) - 12 TO 700 RPM
SPINDLE FEEDS - ( 8 ) - .003" TO .128"
MILLING FEED RATES - ( 16 ) - .004 TO .267 IPR
RAPID TRAVERSE RATE TO HEAD,TABLE & SADDLE- 90 IPM
HEIGHT OF TABLE FROM THE FLOOR - 36-1/2"
MAIN DRIVE MOTOR - 7-1/2 HP A.C.
