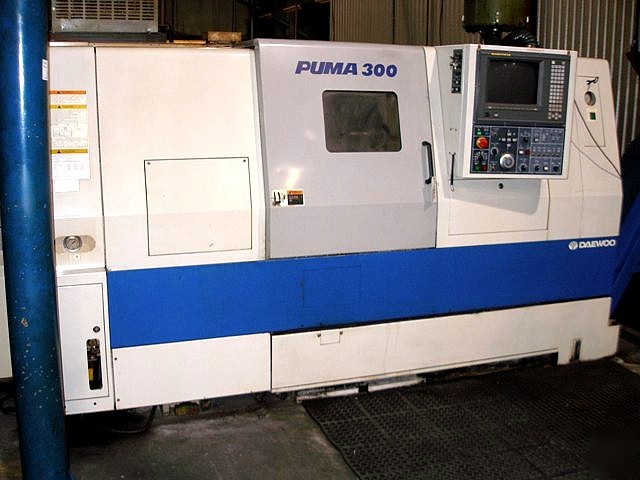

1999 daewoo puma 300C cnc lathe, 12" chk, fanuc 18T
1999 DAEWOO PUMA 300C CNC LATHE, 12" Chk, FANUC 18T
1999 DAEWOO PUMA 300C CNC LATHE, 12" CHUCK, FANUC 18T
DAEWOO PUMA 300C 2-AXIS CNC LATHE
SWING OVER BED ...................... 23.0"
SWING OVER SADDLE ................... 14.5"
MAX. TURNING DIA. ................... 15.7"
MAX. TURNING LENGTH ................. 25.6"
DISTANCE BETWEEN CENTERS ............ 36"
MAX. BAR WORK DIA. .................. 4"
X-AXIS TRAVEL ....................... 11.1"
Z-AXIS TRAVEL ....................... 26.8"
SPINDLE SPEED ....................... 2800 RPM
SPINDLE NOSE ........................ A2-11
SPINDLE BORE ........................ 4.53"
TURRET INDEX TIME ................... 0.15 sec.
OD TOOL SIZE ........................ 1"
BORING BAR DIA. ..................... 2"
RAPID TRAVERSE X/Z AXES ............. 800/945 IPM
TAILSTOCK QUILL DIA. ................ 3.94"
TAILSTOCK QUILL TRAVEL .............. 3.94"
MAIN SPINDLE MOTOR .................. 35 HP
APPROX FLOOR SPACE .................. 138" x 71"
APPROX WEIGHT ....................... 13,400 LBS.
- FANUC 18TC CNC CONTROL w/RS232 PORT
- 35 HP AC HI-TORQUE DIGITAL SPINDLE DRIVE MOTOR
- MACHINE IS WIRED 3/60/220 VOLT OPERATION
*** MACHINE PURRS - NEW SPINDLE BEARINGS JUST INSTALLED ***
Machine Location: Long Island, NY
