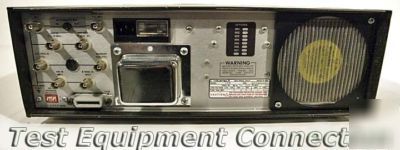

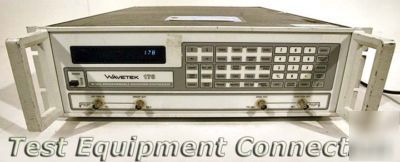

Wavetek 178 /002/ programmable waveform synthesizer
Photobucket The 178 Programmable Waveform Synthesizer is a bench top or ATE programmable instrument that combines the precision of an 8 digit, 50MHz synthesizer with function, signal and sweeper versatility. In addition to sine and square wave to 50MHz, the unit includes the popular triangle, ramps and haverwaves. The unit provides the following features: Multifunction sweep synthesizer that can operate as a trigger, gate or burst generator Frequency range of 1Hz to 50MHz Operational modes Triggered, Gated, Triggered Haverwave, Gated Haverwave, Triggered Burst, Triggered Haverwave Burst and Frequency Sweep Output is 20 V p-p maximum into a 50-ohm load The Wavetek 178 is a used 50 MHz Programmable Waveform Synthesizer.
* Multifunction sweep synthesizer that can operate as a trigger, gate or burst generator
* Frequency range of 1 Hz to 50MHz
* Operational modes Triggered, Gated, Triggered Haverwave, Gated Haverwave, Triggered Burst, Triggered Haverwave Burst and Frequency Sweep
* Output is 20 V p-p maximum into a 50-ohm load
