> X2 hdsp 2000LP :4 character: red :alphanumeric display

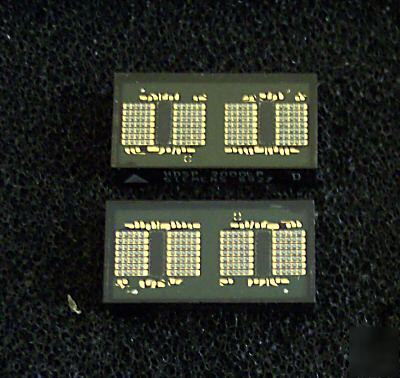

X2 hdsp 2000LP :4 character: red :alphanumeric display
The displays are of the highest industrial quality and have the flexibility of being a dot matrix configuration, as opposed to the usual simple 7-segment type. This ensures a clear, unambiguous, display.
The displays have a serial input and individual column drivers to minimise interconnections required to drive the displays. The displays also have a serial output so that they can easily be connected together without requiring additional pins. The column connectors are common to all the displays in an application, further reducing connection requirements. (ordinary matrix displays require connections to every row and column of every display and soon become unwieldy).
The HDSP 2000LP finds use in the following applications: -
Sales and information displays
Instrumentation and Control readouts
... and a host of other uses that require the clear display, of letters, numbers or symbols
Overall Size: 17.75mm X 7.25 mm
Resolution: Each Character Consists of A 5X7 LED matrix
A comprehensive set of application notes, including reference circuits (schematics), can be found here :-
Finally, below is a picture of the illuminated display. Please note that the colour is not rendered well in the photo, and the display brightness has been understated to show the structure more easily. The actual colour is not orange but red (as per the 639 nm spec).
The purpose of the picture is to show the structure of the matrix and the kind of characters that can be displayed
