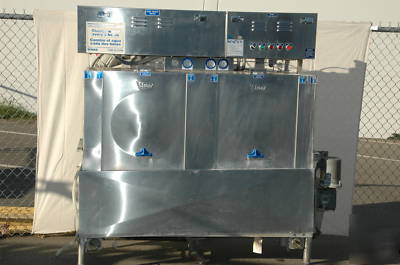

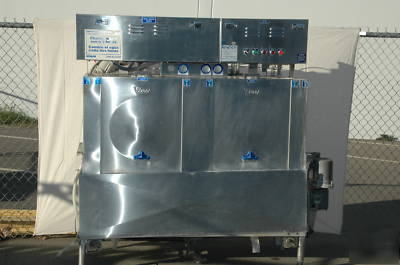

Stero sct-64


The full rack width washing pattern with our 225 gallons per minute pump powers this dishwashing workhorse.
Rinsing and sanitizing is controlled by STERO s exclusive rack activated final rinse which guarantees accurate, trouble free cleaning.
Easy to operate and clean, accessibility to components for maintenance and a basic design that produces clean dishes that is the STERO SCT-64.
Specialized optional equipment may be added to your machine and will give additional flexibility to your dishroom.

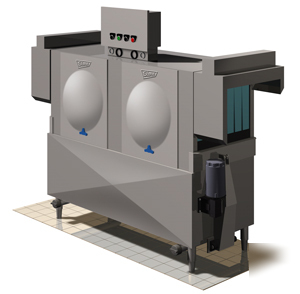

Design: Two tank 20" Rack Conveyor, 64" in length with a power wash, power rinse and a sanitizing final rinse. Flexible strip curtains at each end separate the washing, rinsing and final rinse. Two large inspection doors allow easy access to interior of machine. All components are easily accessible for cleaning and maintenance.
Construction: Tank and hood are formed from 304/18 8 No. 4 mill finish stainless steel, fully welded with a minimum of bolt together construction. Frame is heavy-duty stainless steel flat stock construction conforming to National Sanitation Foundation (NSF) Standard No. 3. The machine is supported by enclosed stainless steel feet. All internal piping, fittings, risers and manifolds are stainless steel.
Power Wash: STERO s unique stainless steel manifolds are center-fed, fitted with stricture free jets with directional vanes and can be easily removed without tools. Center fed manifolds distribute an even flow of wash water over the entire perimeter of the rack, ensuring consistent results. The SCT-64 distributes 225 GPM of detergent water pumped over the ware by a 2 HP motor and pump assembly.
Power Rinse: Center-fed manifolds fitted with stricture free jets with directional vanes and can be easily removed without tools. An even distribution of rinse water fully covers the rack, ensuring consistent results. The SCT-64 distributes 225 GPM of rinse water pumped over the ware by a 2 HP motor and pump assembly.
Both motors have extended stainless steel shafts with packless ceramic seals and stainless steel impellers that align perfectly with the pump housing.
The pumps have easily removable inspection plates front and end and are self draining. Stainless steel perforated strainer pans cover the tank.
Automatic Fill: Fills the machine at the push of a button and keeps it full during operation. In the event of low water in the tank, the system will automatically re-fill to the proper level.
Automatic Start: Rack activated switch starts conveyor and pumps eliminating the need for a manual start.
Automatic Shut Down: Shuts down machine operation during idle periods.
Stainless Steel Front Enclosure Panel: Protects motors and controls from moisture.
Kit 55: STERO mounts a " pressure reducing valve, shock-arrestor and flow pressure gauge in the final rinse line prior to the rinse solenoid valve.
The shock-arrestor prevents line hammer and will double the life of the valve. The PRV will allow adjustment of the final rinse pressure and the gauge will give visual proof when it is correct.
Common Drain: STERO connects overflow and drain valves so that one drain rough-in will service the entire machine.
Motors: 2 HP, 1750 rpm, 225 GPM, heavy duty with sealed bearings and overload protection.
Final Rinse: Stainless rinse arms mounted above and below are fitted with directional fanjets, which create a full coverage spray pattern for maximum rinsing and sanitation. The rack activates STERO s final rinse switch and hot water solenoid valve with stainless steel seat. A vacuum breaker mounted downstream from the solenoid and 6" above the upper rinse complete STERO s rinse system.
Thermometers: One each for wash, rinse, and final rinse.

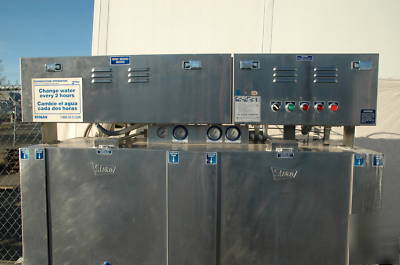

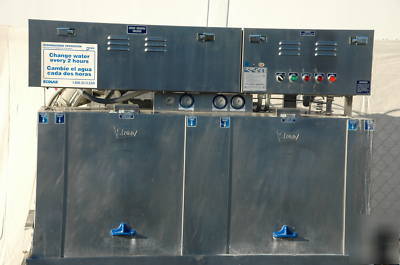

Standard Electrical Features: All motors on STERO conveyor machines are factory wired in waterproof conduit and fittings to a common connection point. The motors are protected by thermal-overloads with manual reset buttons. The magnetic motor starters, start-stop switches, and electric tank heating element contactors (when specified) are mounted in a stainless steel control box for one point connection.

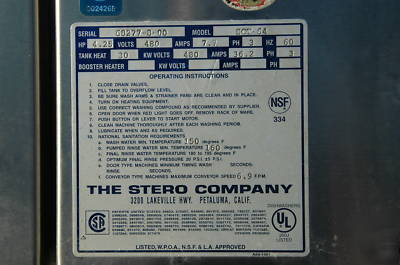

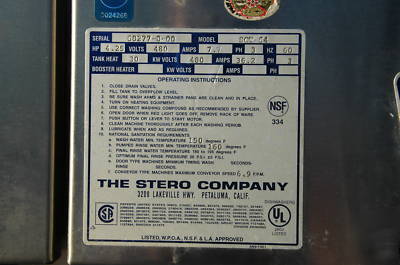

Standard Electrical Specifications: 208/240-60-1, 208/240-60-3, 460/480-60-3.
Door Safety Switch: Prevents the machine from operating if the door is open. The machine will automatically shut-off if the door is opened while the warewasher is running.
Bell-Type Stainless Steel Skimmer: With hinged cover. Acts as overflow and facilitates removal of fats and oils from the wash tank.
Drain Valves: STERO designed poppet-type drain valve; stainless steel seats and casting assures leak proof and trouble free life. Externally controlled with spring-loaded shafts to prevent damage...the finest in the industry.
NSF requires that the water in all power wash and power rinse tanks be maintained at specified temperatures. STERO offers four types of heating equipment to maintain these temperatures. Please specify the one that suits your job conditions.
POWER WASH/POWER RINSE Electric: Two 5 kW stainless steel elements (10 kW total) are mounted in the bottom of the wash tank. Four 5 kW stainless steel elements (20 kW total) are mounted in the bottom of the rinse tank.
The units are thermostatically controlled and have STERO s low water protection system. The elements, thermostat, LWP and contactor are all inter-wired to the control panel.
Gas: STERO has developed another first for the industry. A gas fired tank-heating system that will heat the water to the correct temperature and maintain it during operation. Burners, constructed of woven ceramic fiber, are thermostatically controlled and feature a manual off-on valve. STERO s positive low water protection system safeguards the unit in the event of a low water condition.
Steam Injectors: Two stainless steel injectors with silencers are mounted in the tank. A thermostat controls a special solenoid valve, and maintains the correct temperature.
Steam Coils: STERO designed and built stainless steel steam coils are mounted in the tank. Steam coils allow condensed steam to be returned to the steam generator, a decided advantage when there is a question of steam purity. A thermostat controls a special steam solenoid valve and maintains the correct temperature. A steam trap is mounted on the steam return line.
Vent Cowls: 10" wide 25" deep with extended Splash Guards front and rear. 3 7/8" 24 7/8" I.D. vent opening centered on the 10" length.
Mounted Circuit Breakers: Protection for motors and heating circuit.
Automatic Dwell Conveyor: Automatic dwell, as an optional addition, allows operator to stop rack over the wash manifold for longer washing action.
Sideloader: RAC-27 allows loading of the racks at a right angle to the conveyor, permitting dedicated clean and soiled sides of the room, increased length RAC-32 will accept sheet pans.
Table Limit Switch: Mounted on a clean dish table. The switch shuts off the conveyor when engaged by a rack. This allows single person operation of machine until racks fill unload table.
Optional Correctional Packages Available.
STERO s custom capability meets a variety of your special requirements. For example, optional correctional packages can be specified to provide stringent security.
* Remote-mounted control panels (package option) are protected in a lockable cabinet.
* Control panels with welded and lockable stainless steel hasps.
* Temperature gauges enclosed by stainless steel wire mesh.
* Stainless steel enclosure panels installed?with security screws.
* Stainless steel undercarriage enclosures.
