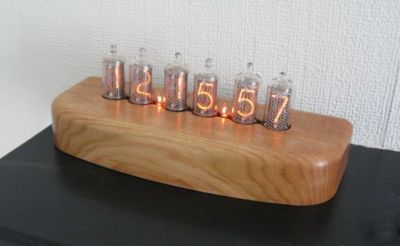

In-8-2 nixie tube clock kit with american cherry case
IN-8-2 NIXIE TUBE CLOCK KIT WITH
PRE-MACHINED CASE IN AMERICAN CHERRY
The kit of electronic parts is fully inclusive - 80 parts in all
Pre-machined case of American Cherry - (rear view)
This needs to be finished with sandpaper and your choice of oil, wax or varnish
Laser-cut base cover and all the screws necessary to finish the clock.
The clock kit is fully inclusive, and is a really enjoyable and satisfying project to complete, with a truly beautiful item for your home at the end, to show for all your hard work. It also makes a great gift - either the kit or the fully finished clock.
All electronic components are included - 80 parts in all, plus:
Pre-machined case in American Cherrycomplete with full hardware pack including laser-cut cover and all the screws necessary to mount the PCB, power input socket and attach the cover. American Cherry is a beautiful hardwood with an orange tint that complements the glow of the nixie tubes perfectly.
Assembled clock kit, ready for mounting in the case
Finished case in American Cherry. Case is supplied pre-machined for you
to finish with sandpaper and your preferred oil, wax or varnish
The kit comes with (via link to download site) a 22 page fully detailed user instruction guide to assembly. The assembly instructions include many detailed photos, and step - by - step instructions for building, testing and using the clock. The kit uses one surface mount device - the DS3231 TCXO IC as pictured below. The IC is not available in through-hole packaging. The comprehensive instructions explain a simple technique to reliably solder this device. The pitch of the pins is the widest of any surface mount device so soldering in place should be easily within the capabilities of the average electronics hobbyist.
Base of clock showing the two buttons
