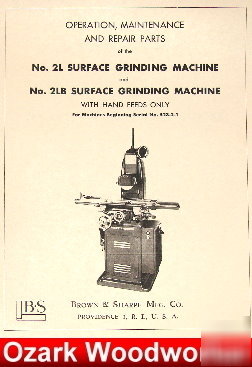

Brown & sharpe 2L, 2LB surface grinder op/part manual
For machines beginning serial No. 523-2-1
Introductory Illustrations........................................................................
Operating Controls and Principal Parts of the Nos. 2L and 2LB
Chapter I Set-up Adjustments and Operating Controls.....................
Wheel Spindle (7) ; Care and Use of Grinding Wheels (8);
Longitudinal Table Travel (10) ; Cross Feed (10);
Suggestions on Set-up and Operation (11).
Chapter II Typical Operations................................................................
Chapter III Optional Mechanism and Additional Equipment................
Spindle Power Down-Feed Arrangement (17) ;
Exhaust Attachment (18); Exhaust Nozzle (18);
Wet Grinding Attachment (18); Castered Base (19);
Magnetic Chucks (20) ; 4% Inch Index Centers (20) ;
High Speed Surface Grinding Attachment (21) ;
No. 1 Adjustable Vise (22); No. 2 Adjustable Swivel Vise (22);
No. 21 Flanged Vise (22); Over-The-Wheel Truing Attachment (22);
Radius and Angle Wheel Truing Attachment (23) ;
Continuous Radius and Tangent Wheel Truing Attachment (24).
Chapter IV Grinding Wheels and How to Select Them........................
Characteristics and Selection of Grinding Wheels.
Chapter V Maintenance.........................................................................
Installing or Relocating the Machine (26) ; Lubrication (27) ;
Wheel Spindle (27); Antifriction-Bearing Spindle Unit (27) ;
Plain-Bearing Spindle Unit (27) ; Disassembling and Repairing
the Plain-Bearing Spindle Unit (28) ; Reassembling the Plain-Bearing
Spindle Unit (29) ; Possible Sources of Grinding Trouble (30) ;
Table and Cross Feed Mechanisms (30) ; Removing Carriage
of No. 2L Surface Grinding Machine (30) ; Removing Carriage
of No. 2LB Surface Grinding Machine (With Hand Feeds Only) (32) ;
Adjustment of Lubricating Pump (32) ; Electrical Controls (33).
How to Order Repair....................................................................................
Repair Parts..................................................................................................
