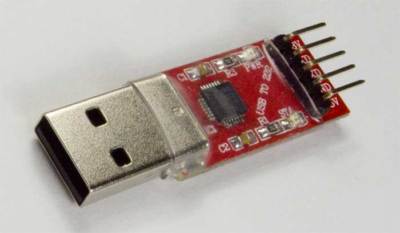

Usb to ttl converter buildin-in CP2102 RS232 MAX232
USB specification 2.0 compliant with full-speed 12Mbps
Standard USB type A male and TTL 6pin connector
6pins for 3.3V, RST, TXD, RXD, GND & 5V
All handshaking and modem interface signals
Baud rates: 300 bps to 115200 bps
Byte receive buffer: 640 byte transmit buffer
Hardware or X-On/X-Off handshaking supported
Event character support Line break transmission
USB suspend states supported via SUSPEND pins
Supports Windows:98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux2.40
* 1 x USB 2.0 to TTL UART 6PIN Module Serial Converter (16mmX48mmX7mm)
* 1 x 4P Dupont wire (Length: 200mm)
