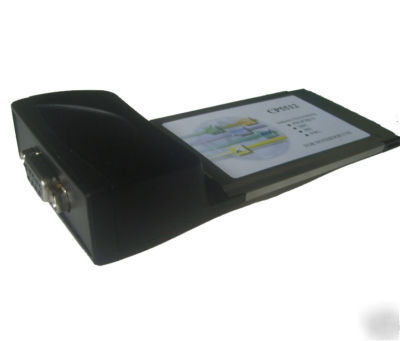

Simatic CP5512 pcmcia card (6GK1551-2AA00)
CP5512 PCMCIA card for Profibus / MPI / PPI / FWL Communications between PC and Simatic control
SIMATIC NET communication card for laptop. Direct replacement including same features as Siemens 6GK1551-2AA00.
Optoelectronic isolated, anti-lightning and surging protection,suitable for laptop PCMCIA 32bit CardBus sloti.
It is used to achieve PROFIBUS/MPI/PPI/FWL communication connection between PC and SIMATIC. Communication speeds arec9.6Kbps-12Mbps.
PROFIBUS-DP master station class 1 and 2
PROFIBUS-DP slave with SOFTNET-DP slave
S7 communication with SOFTNET-S7
S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-DP or SOFTNET-S7
SOFTNET-DP, SOFTNET-DP slave from V6.1
STEP 7-Micro/WIN from V3.2 SP4
ProTool , ProTool/Pro V6.0 SP2
9.6Kbps 12Mbps, the corresponding largest communication distance conforms to PROFIBUS standard.
Interface: Connect PROFIBUS/MPI/PPI,isolated 9 pin Sub-D connector.
Interface protection: Anti-lightning and surging protection(Ipp=100A 10/700us,4KV) on the RS485 interface.ITU-TK20/21,VDE 0433 standard. 15KV ESD protection.
Over-current protection RS485 port can withstand up to 60V voltage caused by continuous over-current.
Standard working voltage:3.3 VDC
