Ttc t-carrier analyzer 209A

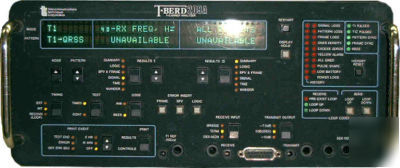

TTC T-Carrier Analyzer (T-BERD 209A) - Original MSRP $1900
Automatic configuration and results summary
Automated sequences of test patterns for one-step circuit qualification and stress tests
Pulse shape analysis, signal level and frequency, simplex current, and wander measurements
Out-of-band ESF loop codes standard
Input and Output Connectors: Bantam, WECO 310, 15-pin D, BNC
Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
Level Measurement: +6 dBdsx to -40 dBdsx; +6 to -6, 0.1 dB resolution; -6 to -40, 0.5 dB resolution
Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
Transmit Timing Sources: Internal Clock, External Clock, Reference Clock, Recovered Clock
Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits), Intelligent Repeaters
Pulse Masks: CB 119 (ANSI T1.102), ANSI T1.403-1989
Wander Measurement: +99999 UI, 1 UI resolution
Power Requirements: 115 VAC 10%, 50 to 60 Hz
The 209A T-Carrier Analyzer is a portable and comprehensive test instrument for the installation and maintenance of T1 and T1C transmission systems.
The 209A was designed for central office testing and can be used for installation, acceptance testing, and troubleshooting.
The 209A can receive and generate test patterns during out-of-service testing or can monitor T1 or T1C circuits without interruption of service.
The 209A can also emulate network devices such as NIU's or CSU's
