> Scale graphic resec p/N13228E0695 qty.1

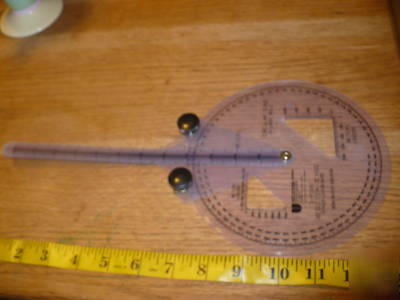

Scale graphic resec p/N13228E0695 qty.1
Request for Quote Plus Technical Data
Manufacturing Part Numbers under this NSN: 13228E0695
6675-01-263-0139 NSN Information
6675-01-263-0139 Master Cross Reference Data
6675-01-263-0139 Characteristics Data
GENERAL CHARACTERISTICS ITEM DESCRIPTION
MATERIAL PLASTIC SHEET 0.40 IN.THK SPEC NO. L-P-535, COMP B.TYPE 2, CL3; O/A O/D 6.50 IN.;O/A ID 6.00 IN.;W/3 POINT RESECTION;ALL POINT O/A LG 20.0 IN., W/GRADUATIONS FROM 1000.0 METERS TO 120, 000.0 METERS MAX, 0/W W 0F POI NTS 0560 IN.;O/A DIA OF SCALE GRADUAT IONS ARE 0 METERS TO 6300.0 METERS MAXFOR CIRCULAR SCALE;ALL NUMBERS ON POINTS ARE 0.060 IN., AND ALL NUMBERS ARE 0.050 IN. ON CIRCULAR SCALE;ALL ALPHA CHARACTERS 0.090 IN.
USE W/ARTILLERY SURVEYERS;SC 667597-CL-E29;NSN 6675-00-664-4662
