New port 4832-c 3 channel optical power meter 818-ir

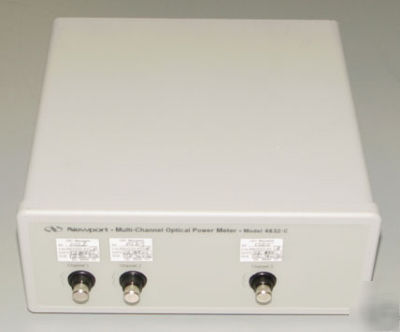

NEWPORT 4832-C 3 CHANNEL OPTICAL POWER METER 818-IR
The exceptional combination of speed and accuracy is achieved by using a 12-bit, high-speed A/D for fast sampling and a 15-bit integrating A/D for the ultimate in precision DC measurements. The sensitive analog circuitry is kept in the breakout box, away from the noisy PC environment. All communications with the PC are performed via a high-speed serial bus.
Measurement units of Watts, Amps or direct A/D data can be selected. In alignment or scanning applications requiring high-speed measurements, the A/D data and range information can be transferred directly to the PC, where further computations or conversion to dB or other units can be performed very quickly. The system throughput is further optimized by using computers equipped with 486 or Pentium CPUs.
System flexibility allows the meter to be configured with one to a maximum of four channels, specified at the time of purchase. Future channel expansions can be performed by Newport. The 4832-C is compatible with all of Newport s Low-Power, 818 Series detectors. Each channel is optimized to a specific detector, in order to maximize bandwidth and minimize noise.
* Each channel supports the 818-IR or the 818-F-IR sensor
* Terminal Emulator 2 Disks
* Software Drivers and Utilies
A copy of the manual can be purchased for an additional $25.00
