> Hartzell vacuum exhaust / circulation 1.5"hg @13000 cfm
Hartzell vacuum exhaust / circulation 1.5"hg @13000 cfm

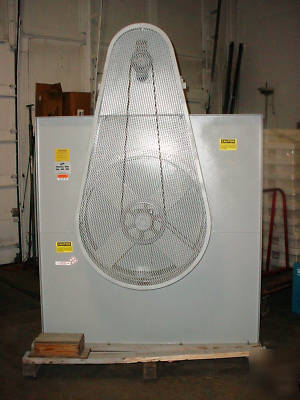

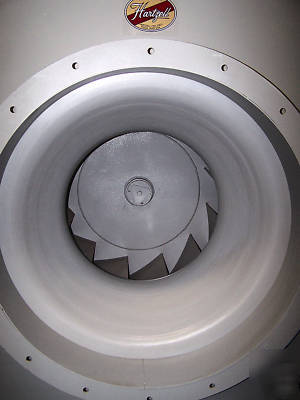

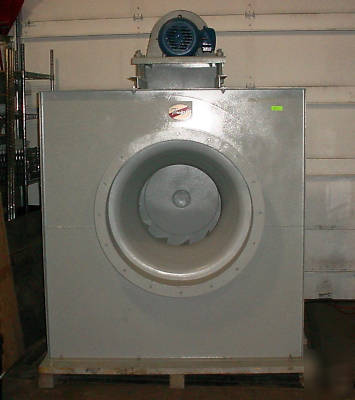

HARTZELL FAN CO., HARTZELL BACKWARD CENTRIFUGAL VACUUM 1.5"HG @ 13000 cfm
NEW IN 2002 AND NEVER USED STILL ON THE ORIGINAL PALLET

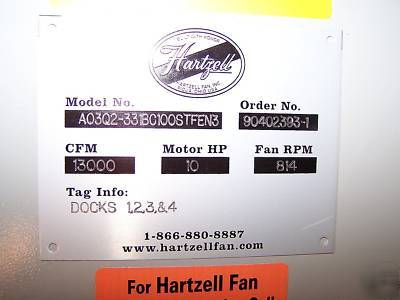

MODEL A0302-331BC100STFEN3,ORDER 90402393-1, CFM 13,000,
Order # 90402393, 13,000 CFM @ 1.5 Inch H20 Static Pressure, cal @ density of .073.
Density includes a little elevation or temp.

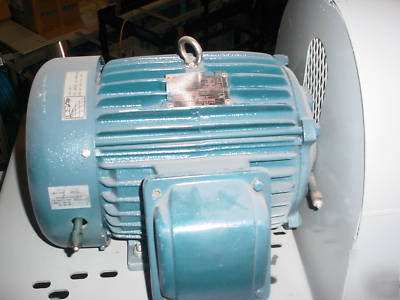

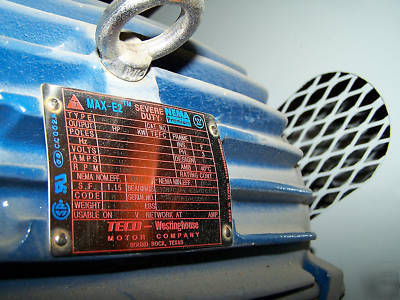

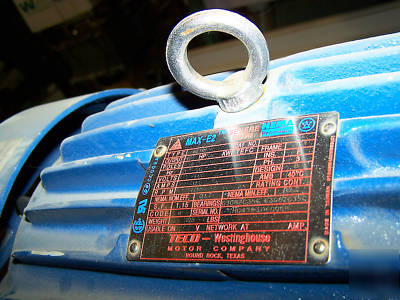

MOTOR HP 10, FAN RPM 814, MAX-E2 SEVERE DUTY MOTOR TYPE ADFF, CAT NO HH0104, OUTPUT 10HP, 7.5 FRAME 215T, POLES 4, DESIGN B, HZ 60, VOLTS 460, AMPS 11.6, RPM 1755, NEMA NOM EFF 91.7, NEMA MIN EFF 90.2, BEARINGS 6308ZC35C6306ZC35C, CODE H, SN H04383960008, MODE A03Q2-331BC1005TFEN3,
TO LOOK UP ALL OF THE SPECS FOR YOUR APPLICATION INCLUDING FLOW CURVES CLICK ON THIS PDF http:// /getbulletin/series-03/

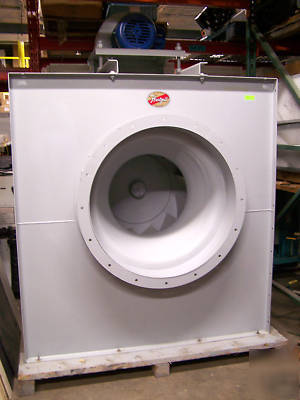

DIMENSIONS OF FAN OPENINGS OUTER 39.5",
Aprox dimensions of item 63" x 50" x 90" TALL
Aprox weight of item 1200 lbs (with pallet)
