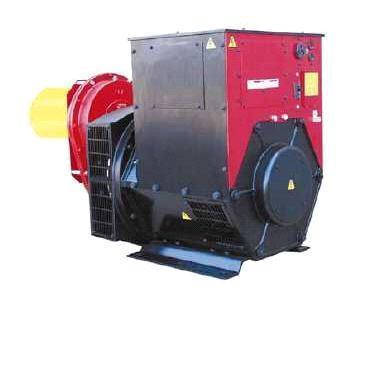

Generator - pto powered - 150 kw - 150,000 watts
150 kW (150,000 Watts) - 120/240V - Single Phase - Heavy Duty all Steel Housing
SEE OUR FULL LINE OF PTO GENERATORS BY FOLLOWING THIS LINK: OUR PTO GENERATOR LINE
* Heavy Duty Winco 150,000 Watt (150 kW) - 120/240V - Single Phase - PTO Driven Generator
* This powerful Generator packs 150 kW (150,000 Watts) of Power
* We offer PTO generators in sizes ranging from 7.2 kW through 150 kW with either 540 RPM or 1000 RPM gear cases (available on most models).
* Winco PTO generators are a cost effective way of providing 120/240V single phase standby power when commercial power is interrupted, inaccessible or impractical.
* Power Rating: 150,000 Watts / 150 kW (Continuous rating per NEMA MGI-22.40 standards)
* A/C Output Voltage: 120/240V
* Generator Speed: 1,800 RPM
* Receptacles: 1 Each: NEMA 5-20R 120V Duplex - 1-20 Amp / 1 Each NEMA 6-50R 240V - 1-50 Amp
* Tractor Hp Required: 290 Hp (for full rated output - each 2 Hp of tractor power equals approximately 1 kW of electric power output)
* PTO Input Speed: 1,000 RPM
* Code G Motor Starting: 100
* Precision AVR regulated voltage 2%
* Speed indicator visible from tractor seat
* Optional Item: Model VIR12320 - PTO Drive Shaft (Tumbling Bar) - Please Inquire
* Optional Item: Model VIRTDM74 - Trailer Kit - Please Inquire
* Manual Transfer Switches Available
* Overall Dimensions: 46.8" L x 20.8" W x 30.2" H
* Please allow 2 weeks for delivery
* 3 Year Warranty (Includes Parts & Labor)
