Box of 9 premotec 35 watt brushless dc motors 24 volt

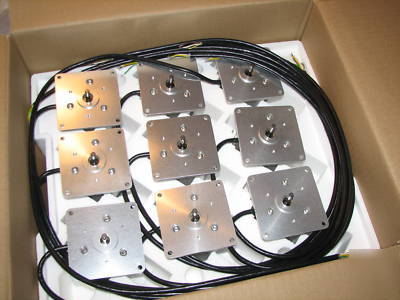

Box of 9 Premotec 35 watt 24 volt brushless DC motors
Description: 35 watt brushless motor with integral motor controller. This motor has a simple 4 wire interface. Brown wire = +24Vdc motor power. Green wire =Ground. White wire = 0-5Vdc speed control. Yellow wire =Tachometer output (2 pulses per rev). To vary the speed of the motor simply vary the speed control voltage connected to the white wire. This signal can come from a PLC or microcontroller, a variable dc power supply, or through a potentiometer. The white wire can also be tied directly to +24V (brown wire) for full speed operation. Very little current is needed for the speed control input; it has an input impedance of approximately 120K ohms.
http://web.newsguy.com/metalworker/bldc_silver.pdf
