Ac dc ammeter voltmeter resistance multimeter amp meter

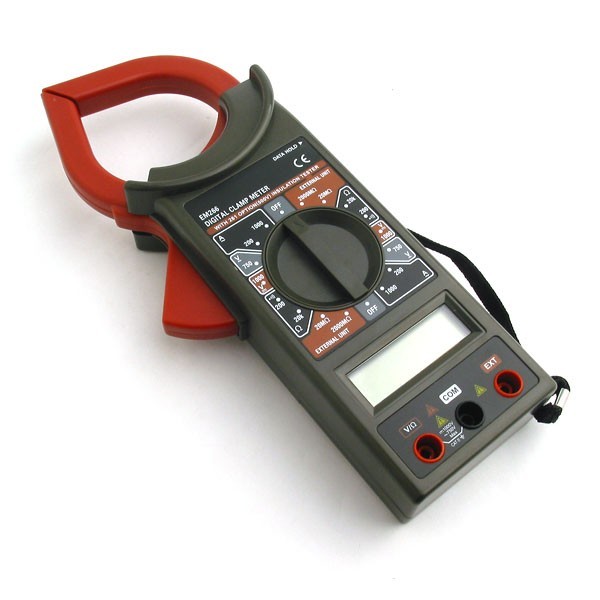

AC DC Ammeter Voltmeter Resistance Multimeter Amp Meter
No guesswork here - accuracy and reliability are paramount the meter is ISO9001 certified ensuring that you get the right results time after time.
5 Separate Functions in 1 Compact Handheld Meter:
(2.5% + 5) For 800A & below
If >800A, the reading is for reference only
* Frequency response: 50 ~ 60Hz
* Indication: Average (rms of sine wave)
* Overload protection: 1200A with 60 seconds
* Frequency range: 45 ~ 400Hz
* Overload protection: 200mV range: 250V AC: other ranges: 750V rms AC
* Overload protection: 200mV range: 250V AC / other ranges 1000V DC/AC peak
When resistance is <50 , buzzer will sound
* Overload protection: 250V rms AC
* Operating temperature: 0 C ~ 40 C
* Storage temperature: -10 C ~ 50 C
* Operating humidity: <75%RH
* Storage humidity: <85%RH
* Reading rate: 2 - 3 times per second
* Polarity: Automatic polarity indication, _ displayed for negative polarity
* Power supply: X1 9V battery (included)
* Battery life: up to 200 hours
* Display: 3 digits LCD (1999 counts)
* Over range indication: "1" is displayed on LCD
* Dimensions: 240 x 102 x 47mm
* Weight (inc battery): 300g
The digital clamp meter is brand new and unused and is supplied with the following:
