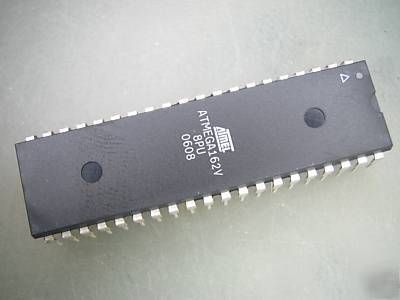

Atmel 8 bit microcontroller ATMEGA162V-8PU
Up for Sale is one (1) piece ATMEL 8 Bit Microprocessor ATMEGA162V
High-performance, Low-power AVR 8-bit Microcontroller
131 Powerful Instructions Most Single-clock Cycle Execution
32 x 8 General Purpose Working Registers
Up to 16 MIPS Throughput at 16 MHz
High Endurance Non-volatile Memory segments
16K Bytes of In-System Self-programmable Flash program memory
Write/Erase cycles: 10,000 Flash/100,000 EEPROM
Data retention: 20 years at 85 C/100 years at 25 C(1)
Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Up to 64K Bytes Optional External Memory Space
Programming Lock for Software Security
JTAG (IEEE std. 1149.1 Compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support
Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and
Real Time Counter with Separate Oscillator
Dual Programmable Serial USARTs
Master/Slave SPI Serial Interface
Programmable Watchdog Timer with Separate On-chip Oscillator
Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated RC Oscillator
External and Internal Interrupt Sources
Five Sleep Modes: Idle, Power-save, Power-down, Standby, and Extended Standby
40-pin PDIP, 44-lead TQFP, and 44-pad MLF
