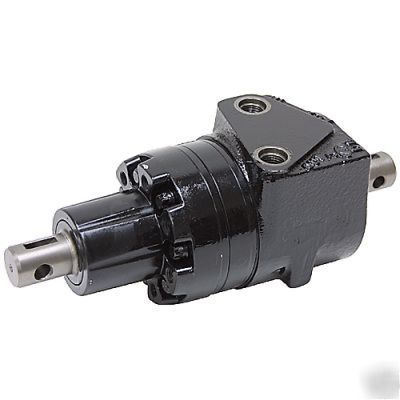

5.9 cu in torque generator steering valve 9-7123
Brand new, Char-Lynn model 217-1050 torque generator. Can be connected directly to steering shaft on manual steering systems for power assist to the steering linkage. Also use for manually operated gates, control valves, other situations requiring powerful rotary motion from low input. Made to be mounted with no axial or radial loads on either shaft, not made for use with a pinion gear or sprocket. Gerotor power element.
* 3.5 GPM recommended input flow
* 700 in-lb. output torque @ 1,000 PSI
* 50 lb. max. output shaft side-load
* 7/8" dia. x 1-1/2" long, woodruff-keyed shafts w/ 5/16" dia. thru-hole in both
* Three 5/16"-18 mounting holes on 2-1/2" B.C. on input end
* Overall size 6-3/8" x 3-5/8" x 3-13/32"
