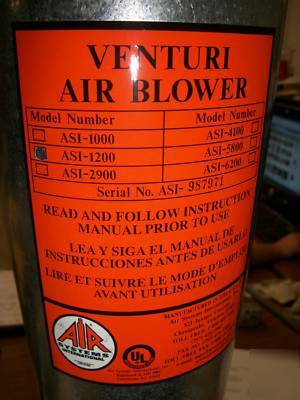

Air systems asi-1200 venturi style pneumatic air blower
Ventilation with Compressed Air or Steam

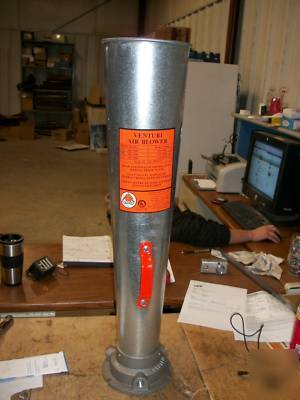

* Venturi Style Pneumatic Air Blowers
* Also called air horns, blowers are used to ventilate explosive and hazardous vapors safely.

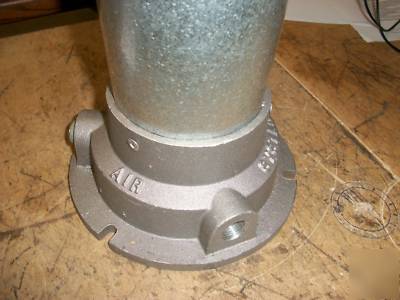

* No moving parts. Operate on compressed air or steam at pressures up to 140 psi. Galvanized steel with lightweight cast aluminium base.
Venturi Style Pneumatic Air Blower, NPT Inlet 1/2 In, Total Air Flow @ 50 PSIG 1211 CFM, Total Air Flow @ 70 PSIG 1429 CFM, Total Air Flow @ 90 PSIG 1580 CFM, Air Consumed @ 50 PSIG 38 SCFM, Air Consumed @ 70 PSIG 53 SCFM, Air Consumed @ 90 PSIG 64 SCFM, Operates From Compressed Air Up To 140 PSI, Base Dia 7 5/16 In, Overall Length 32 1/8 In, Galvanized Steel Horn with Lightweight Cast Aluminum Base, For Use With Male Inlet Fittings
