6" y 8" x hansvedt cs-1 workman ram-type edm, model 201

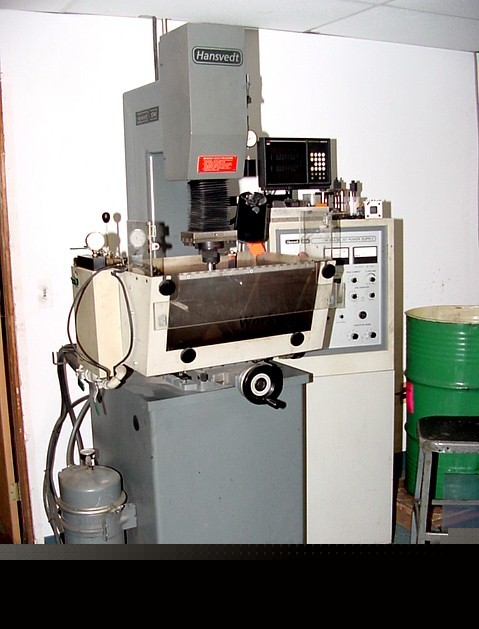

6" Y 8" X Hansvedt CS-1 Workman RAM-TYPE EDM, Model 201
6" Y Axis 8" X Axis Hansvedt CS-1 Workman RAM-TYPE EDM, Model 201 20 Amp Power Supply, System 3R, DR
HANSVEDT "CONVENTIONAL" RAM TYPE EDM
MODEL: CS-1 WORKMAN S/N: AP13834 NEW: 1993
WORK TABLE SIZE ...................... 9" x 15"
TABLE TRAVEL ......................... 6" x 8"
WORTANK SIZE ......................... 16" x 24" x 11"H
PLATEN TO TABLE ...................... 18" MAX.
RAM TRAVEL ........................... 8"
PLATEN SIZE .......................... 5.75" x 4"
MAX. ELECTRODE WEIGHT ................ 75 LBS.
MAX. WORKPIECE WEIGHT ................ 200 LBS.
WORKTANK CAPACITY .................... 18 GALS.
RESEVOIR CAPACITY .................... 45 GALS.
APPROX. WEIGHT ....................... 1,400 LBS.
APPROX. DIMS. ........................ 64" x 38" x 82"H
HANSVEDT "H-PULSE" 201E 20 AMP POWER SUPPLY
-"SERVO CONTROLS" FEATURING DITHER, MANUAL, EDGE FINDER,
-"EDM CONTROLS" LOW PEAK CURRENT, ARC DURATION
(.5 TO 1843 MICROSECONDS), PEAK CURRENT, POLARITY,
ELECTRODE MATERIALS & % ON-TIME SELECTIONS
DC SERVO & BALLSCREW DRIVE FOR RAM
RAM CYCLER PROVIDES UP/DOWN MOVEMENT TO PROMOTE BLIND
"GAP MONITOR" AUTOMATIC DC ARC PROTECTION SYSTEM
MICROMETER DOWN STOP W/AUTOMATIC RETRACTION
ANILAM 2-AXIS DIGITAL READOUT DISPLAY
SINGLE PHASE/60 CYCLE/117 VOLT ELECTRICS
** "EXCEPTIONAL" CONDITION & APPEARANCE **
