Olympus industrial fiberscope IV6C6 - 20 ntsc
OLYMPUS INDUSTRIAL FIBERSCOPE IV6C6-20 NTSC

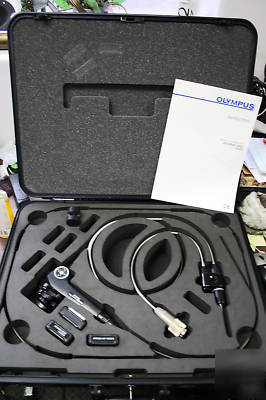

IN GREAT CONDITION, CASE IS SLIGHTLY BEAT UP BUT WORKS FINE, INCLUDES KEY.
The IV6C6 Series scopes bend four ways-up/down and left/right movement that makes it much easier to inspect curved pipes and gas turbines. With the angulation range increased to 150degrees , rear-view inspection is also possible.
Both new series use tungsten-instead of the usual stainless steel-for the braid around the insertion tube. The exclusive Olympus Tapered Flex (TF) tube is already noted for its easy insertion, and the tungsten material makes it even simpler. The new tube is also impregnated with a special resin*5 that improves both insertion and durability.
With their waterproofing and greater resistance to wear, the scopes are suited to the most demanding applications, including inspection of water supply and drainage systems.

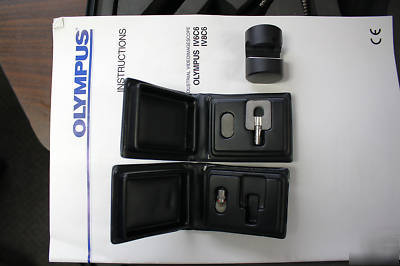

Broad lineup of optical adapters
When an IV8C6 scope is equipped with the optional Dual-Image Adapter, the direct and side views are displayed simultaneously on the monitor. With this convenience, a defective part can be shown in the side view while the internal wall of a pipe is displayed in the direct view. The Dual-Image Adapter can also be combined with the 3-D Measurement Adapter and a videoanalyzer to calculate the distance between two points on a line or measure depth. With its bright lens, the optional Wide Cavity Adapter is suited to inspections of large areas. When it is fitted with the optional Side View Adapter, the IV6C6 delivers super-macro images from a focal distance of only 1 mm. With this high- magnification close-up, it is suited to front-view inspections of the internal walls of small-diameter pipes.
The Five-Button Remote Control simplifies operation and boosts efficiency. Positioned on the sides of the scopes' control section, it gives easy access to Record, Zoom, Enhance and other functions.
The Series 6 models are the world's first with a small microphone in the control section. When it is linked to a recording device, audio notes can be recorded along with images.
Industrial Videoimagescope IV6C6-13, 20, 35, 50, 75
40degrees /80degrees /120degrees (convertible using optical adapter)
Direct/side viewing (convertible using optical adapter)
See optical adapter specifications (fixed focus)
Tungsten with P.T.F.E. impregnated
Fully waterproof for underwater use (corrosion-protected against machine oil, kerosene and 5% saline)
