New altera cpld development study tool & byteblaster
New Altera CPLD Development Study tool & ByteBlaster
This item is about a brand new Altera CPLD study/development set. The development board has on board EPM7128SL840-15 CPLD chip. So it can be used to develop/study popular Altera CPLD devices such as EPM7128, EPM7064 ,EPM7032 etc. The CPLD code also compatible with 3.3V devices, like EPM7128A, EPM7064A ,EPM7032A, EPM3128A, EPM3064A ,EPM3032A
The set comes with an Altera Betyblaster CPLD JTAG download cable and it has on board JTAG port. So that it works with Altera MAX+plus10.2 software or Quartus II Web Edition software. User is able to compose the CPLD source code and then download the code into CPLD device from the software directly.
On board HT46R47 MCU provide more flexible controls on clock, PWM, RS232 etc.
* DC power can be any AC or DC 8~15V or DC+5V on 5V port
* CPLD clock controlled by on board MCU HT46R47, can be adjusted from 0 to Maximum frequency.
* This develop board supports ALTERA EPM7128SLC(PLCC84) EPM7064SLC(PLCC68);EPM7064SLC/EPM7032(PLCC44)
* Four 7 segment display units for digital display experimental
* 2 group 16 LED circuit, for more display capabilities. Such as LED running light test
* Adjustable motor drive PWM output. A selectable motor control source either MCU or CPLD
* One channel analog adjustable voltage input. MCU PA port output the 9 bit digital voltage for CPLD
* On board prototyping area for more user testing
* On board RS232 port with MAX232 converter

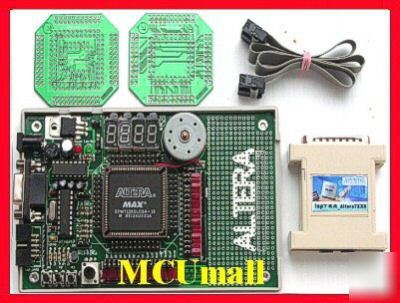

* One Altera CPLD Development Board with EPM7128SLC84 on board
* One JTAG download Byte Blaster dongle
* One EPM7064_PLCC68 chip adapter PCB
* One EPM7032, EPM7064 PLCC44 and EPM128SLC_84 chip adapter PCB
* One CD for schematic, demo code etc.
* Supported by MCUmall Electronics Inc. Canada
