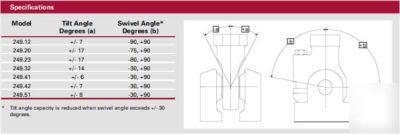

Mts model 249.32 [77,000-lb] swivel actuator bases

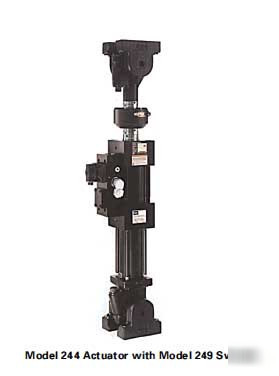

The swivel base can be used to attach the linear hydraulic actuator, or other actuating device to a reaction mass or frame for structural or component testing. It typically bolts to an actuator end cap, but can be used anywhere a backlash free swivel connection is required. The mounting holes are designed to provide easy attachment to a variety of MTS actuators and fixtures.
Strong, durable, versatile swivels specifically designed for the rigorous demands of closed-loop servohydraulic testing applications.
Force ratings available from 25 kN (5,500 lbs) to 1000kN (220,000 lbs).
Unique positive bearing preload adjustment eliminates backlash that causes load spikes and disturbs loading rates.
Design utilizes cast, fatigue resistant, ductile iron for minimum weight and maximum strength.
Maintenance free, non-metallic swivel bearings reduce swivel friction, eliminate the need for lubrication, and increase swivel life.
SAVE $1000 off list price on each unit
