Fadal 2016L cnc vertical machining center 2004

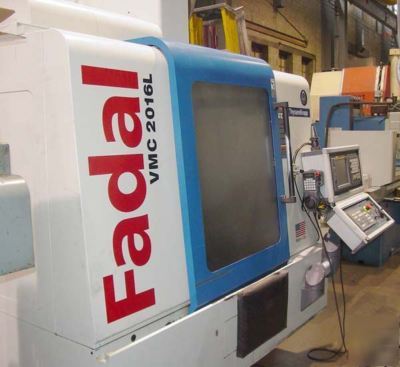

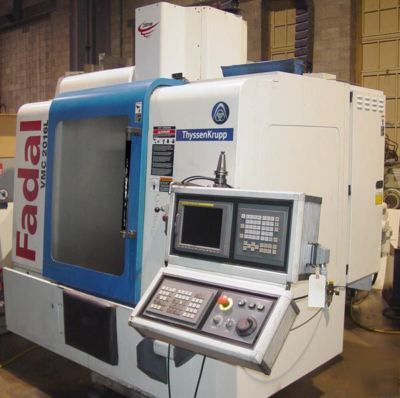

FADAL CNC VERTICAL MACHINING CENTER
Model 2016L, S/N 012004086763, New 2004

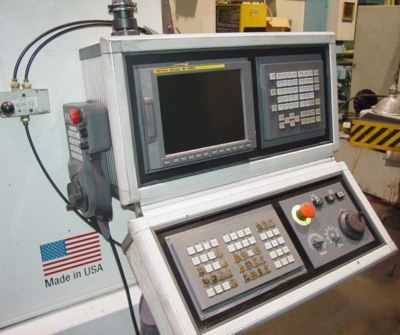

Fanuc 18i-MB5 CNC Control, RS-232 Port, Multiple Part Program Storage,

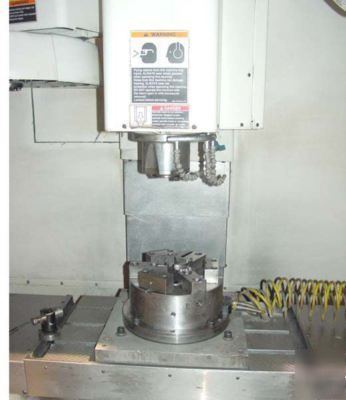

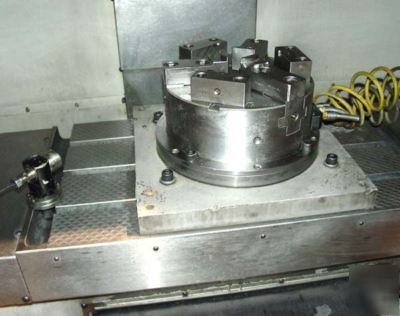

Self Diagnostics, 21 Station Automatic Tool Changer, 10" 3-Jaw Pneumatic
Chuck Mounted on Table, Thru-Spindle Coolant, Graphics, Rigid Tapping,
Hand Held Pendent Control with Manual Pulse Generator, Axis Error
Compensation, Full Enclosure, Coolant System and Chip Conveyor. CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 29.5" x 16"
Table Load Capacity................................... 1,000 LBS
Longitudinal Travel (X-Axis).......................... 22"
Cross Travel (Y-Axis)................................. 16"
Vertical Travel (Z-Axis).............................. 20"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 10- 7,500 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 106"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 8,000 LBS CONDITION: Appears to be in Excellent Condition ! CONDITION: This Machine Appears to be in Excellent Condition !
