Bobrick B6806.99X18-18" straight peened grab BAR1.5"dia

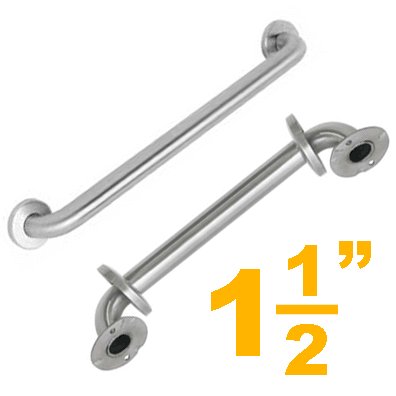

Bobrick B-6806.99x18 Straight Peened Grab Bars
1-1/2 inch dia. Grab Bars from Bobrick. Type-304 stainless steel with satin finish. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/2 in. (38mm) outside diameter.
Clearance between the grab bar and wall shall be 1-1/2 in. (38mm). Concealed mounting flanges shall be 1/8 in. (3mm) thick stainless steel plate, 2 in. x 3-1/8 in. (50 x 80mm), and equipped with two screw holes for attachment to wall. Flange covers shall be 22 gauge (0.8mm), 3-1/4 in. (85mm) diameter x 1/2 in. (13mm)
deep, and shall snap over mounting flange to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) for structural strength. Manufacturers service and parts manual shall be provided to the building owner/manager upon request.
