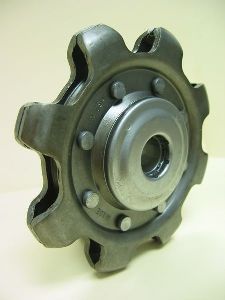

Aetna extended pitch sprocket idlers 0.516" - AG2427-am
Case hardened teeth prolong chain and idler life. Over-size, factory packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication. Bearings races are case hardened to resist wear, outers are coined and inners are burnished for smooth running. Full ball complement. Aetna's self-contouring, free running, self wiping seal provides positive contact under all conditions of misalignment. Accurately contoured heavy gauge form available in a range of sprocket sizes. Chain Number 2060; Pitch 1 1/2 in; Roller Diameter 15/32 in; Number of Teeth 8; Bore Size (Dim. A) 0.516 in,0.522 in; Dimension B 2 5/64 in; Outside Diameter (Dim. C) 4 7/32 in; Tooth Width (Dim. D) 7/16 in; Dimension E 31/32 in; Hub Width (Dim. F) 31/32 in Check out my other items!
