> New asco redhat valve 1/2 inch 12VOLT in box
New asco redhat valve 1/2 inch 12VOLT in box

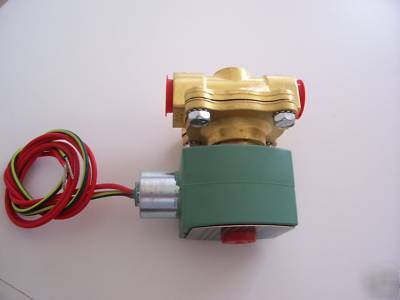

ASCO RedHat inch 12V Solenoid Valve
ASCO Red Hat general purpose 2-way normally closed solenoid valves will provide On/Off control of air, inert gas, water, light oil (300SSU) and other clean flowing media compatible with the materials of construction. This valve has one inlet and one outlet and does not pass fluid until the coil is energized. Used in a variety of applications including: automated systems, dispensing systems, welding equipment, restaurant equipment, food processing machinery, water treatment systems and laundry equipment.
Type: 2-Way Normally Closed (energize to open)
Pipe Size: 1/2" NPT, 5/8" Orifice, Cv 4.0
Construction: Brass Body, NBR (buna-n) seals, other materials include PA (nylon), stainless steel 305, 430F, 302, and a copper shading coil
Pressure (Min-Max): 5-125 PSI (air), 5-100 PSI (water), 5-100 PSI (light oil)
Flow Rate (Min-Max): 9-40 GPM (water), 36-333 SCFM (air)
Coil Type: General purpose/watertight, dusttight, corrosion resistant
Enclosure Rating: Type 1, 2, 3, 3S, 4 & 4X
Coil Rating: 12 VDC, 11.6 watts, class F continuous duty service
Coil Termination: 1/2" Conduit Hub with 18" lead wires
Agency Approvals: UL Listed, CSA certified, CE
Media Temperature: 150 F maximum
Ambient Temperature: 32-104 F nominal (minimum 0 F where freezing water is not a factor)
PDF Data Sheet: ASCO 8210 Series Valves
