Fet transistor pcb with 2N7000 (#2035)
FET Transistor PCB with 2N7000 (#2035)

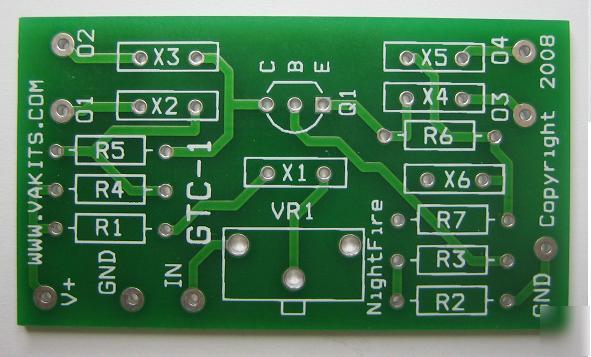

This is the Prototype Transistor PCB and FET - 2N7000 Design Kit. This kit is what you need to develop numerous different FET transistor circuits. It includes the extremely useful Prototype Transistor PCB, which was designed by us, and some of the very popular 2N7000 N-Channel FET Transistors in the standard leaded TO-92 package. You will also get a blank Prototype PCB with 162 holes, also designed by us, to expand your circuits.
With this kit, you can build transistor switches, amplifiers, buffers, level shifters, logic gates, emitter followers, and much more. The Prototype Transistor PCB has been developed so that different types of biasing can be used. This Prototype PCB can be used for NPN, PNP, FETs, MOSFETs, SCRs, and more. Simply populate the componets that you need.
You will also get different common values of 1/4 Watt, Carbon Film 5% Resistors, Ceramic & Aluminum & Tantalum Capacitors, Crystals, Signal & Power & Zener Diodes, Trimpots, LEDS, Resettable Fuses, an Electret Microphone, a miniature Speaker & some Electronic Hardware to interface your circuit to the outside world. There are NO SMT components in this selection; all components are Thru-Hole.
The Transistor Prototype PCB is 1.13" x 2.0" made of FR-4 material, 0.062", with all holes plated-thru. The Blank Perf-Board is 1.14" x 2.10" and it made of FR-4 material, 0.062", with 162 Plated Thru-Holes. There are enough different parts to build many different types of transistor circuits. Search the web for incredible circuits to build. The Datasheets and Application Notes for the Transistors, along with hundreds of others, are located at DATASHEETS. We supply the parts, you supply the ingenuity. You get the following:
GTC-1, Prototype Transistor PCB
Blank Perf-Board PCB with 162 Plated-Thru Holes
1N4001, 100V, 1Amp, Silicon Rectifier
1N4007, 1000V, 1Amp, Silicon Rectifier
BCX79C12, 12V, 1/2 Watt, Axial
9.1 Ohms, 1/4 Watt, 5%, Carbon Film
30 Ohms, 1/4 Watt, 5%, Carbon Film
47 Ohms, 1/4 Watt, 5%, Carbon Film
56 Ohms, 1/4 Watt, 5%, Carbon Film
100 Ohms, 1/4 Watt, 5%, Carbon Film
150 Ohms, 1/4 Watt, 5%, Carbon Film
200 Ohms, 1/4 Watt, 5%, Carbon Film
249 Ohms, 1/4 Watt, 1%, Carbon Film
390 Ohms, 1/4 Watt, 5%, Carbon Film
422 Ohms, 1/4 Watt, 1%, Carbon Film
698 Ohms, 1/4 Watt, 1%, Carbon Film
1.0K, 1/4 Watt, 5%, Carbon Film
1.5K, 1/4 Watt, 5%, Carbon Film
2.2K, 1/4 Watt, 5%, Carbon Film
3.6K, 1/4 Watt, 5%, Carbon Film
8.2K, 1/2 Watt, 5%, Carbon Film
10K, 1/4 Watt, 5%, Carbon Film
11.3K, 1/4 Watt, 1%, Carbon Film
13.7K, 1/4 Watt, 1%, Carbon Film
27K, 1/2 Watt, 5%, Carbon Film
47K, 1/4 Watt, 5%, Carbon Film
69.8K, 1/4 Watt, 1%, Carbon Film
100K, 1/4 Watt, 5%, Carbon Film
300K, 1/4 Watt, 5%, Carbon Film
3.9 pF, 50v, NPO, Ceramic Disc
1200pF, 50v, X5F, Ceramic Disc
.022uF, 100v, X7R, Ceramic Disc
4.7uF, 50v, 85 C, Aluminum, Radial
12uF, 63v, 105 C, Aluminum, Radial
22uF, 16v, 85 C, Aluminum, Radial
68uF, 35v, 85 C, Aluminum, Radial
100uF, 16v, 85 C, Aluminum, Radial
150uF, 16v, 85 C, Aluminum, Radial
220uF, 10v, 85 C, Aluminum, Radial
330uF, 10v, 85 C, Aluminum, Radial
470uF, 16v, 85 C, Aluminum, Radial
680uF, 50v, 105 C, Aluminum, Radial
1200uF, 16v, 105 C, Aluminum, Radial
3300uF, 10v, 85 C, Aluminum, Radial
5600uF, 6.3v, 105 C, Aluminum, Radial
Bi-Color, Red & Green, Diffused, Rectangular
Green, Bright, Rectangular, Radial
1K, Single-Turn, Thru-Hole, PCB Mount
2K, Single-Turn, Thru-Hole, PCB Mount
5K, Single-Turn, Thru-Hole, PCB Mount
10K, Single-Turn, Thru-Hole, PCB Mount
20K, Single-Turn, Thru-Hole, PCB Mount
50K, Single-Turn, Thru-Hole, PCB Mount
8 Ohms, .1 Watt, Round, Miniature
3 Amps, 250V, TR250-145U-2, Raychem
Electret, Panasonic, WY-64MNT315
Male, 8-pin .100" Centers, Square Post, Breakable
Female, 8-pin .100" Centers, Square Post, Breakable
2N7000 N-Channel Enhancement-Mode FET
