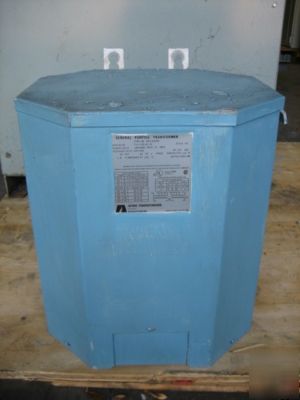

Acme transformer 25 kva 240 x 480 120/240 1PH 25KVA 3R

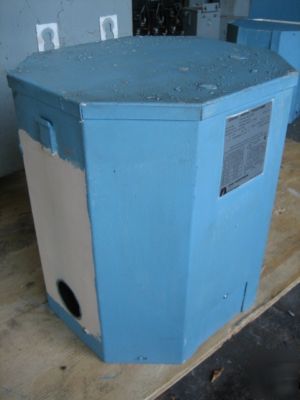

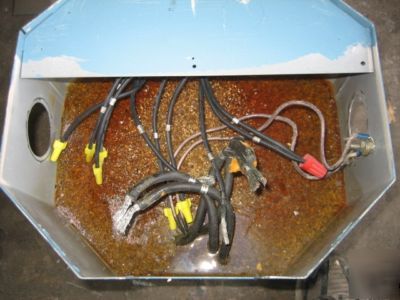

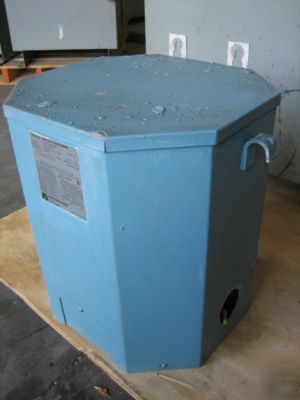

This Transformer is in Good Condition Externally and Excellent Condition Internally. This Transformer has been Previously Painted Blue and the Left U-Shaped Mounting Bracket is Broken Off. Lots of Taps!

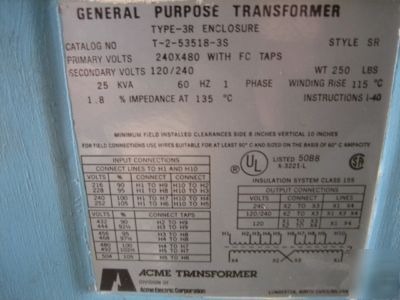

Catalog No: T-2-53518-3S Style SR
Primary Volts: 240x480 with FC Taps
Secondary Volts: 120/240 Weight: 250 Lbs.
25 kVA 60 Hz 1 Phase Winding Rise: 115 C
1.8% Impedance at 135 C Instructions: I-40
Side 8 Inches, Vertical 10 Inches
Insulation System X-3221-L Insulation System Class 155
14" (Width) x 12.5" (Depth) x 16" (Height)
