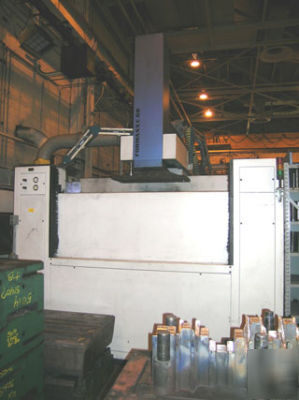

> Hanst & kilb formaxx c-68 ram type edm 4-axis cnc
Hanst & kilb formaxx c-68 ram type edm 4-axis cnc

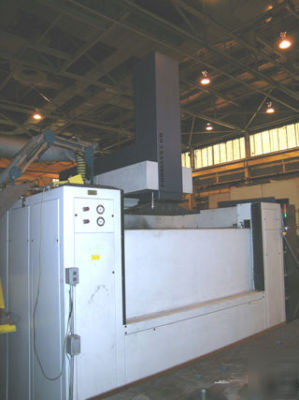

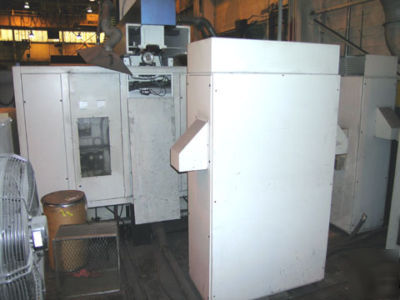

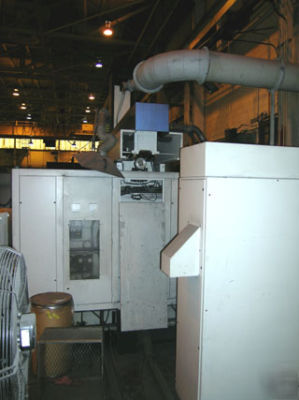

Liberty Machinery Company You are looking at a Hanst & Kilb "Formaxx C-68" 4-Axis CNC Ram Type EDM Serial No. 068 0103Condition - UsedNew - 2001LMC #19753 Includes The Following;- Stationary Table 66.9" x 31.6"
- Working Head Travels, X-59", Y-23.6", Z-27.6"
- Generator 120 Amp, 2 Channels

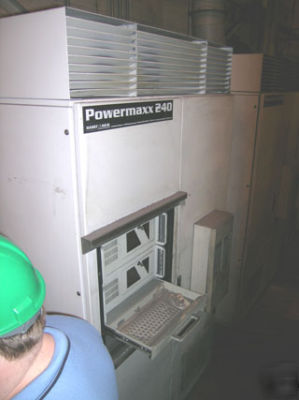

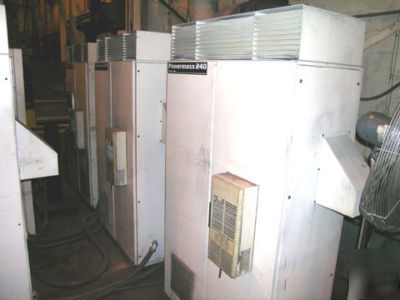

- Power Unit, (3) Pieces with 160 Amp Each

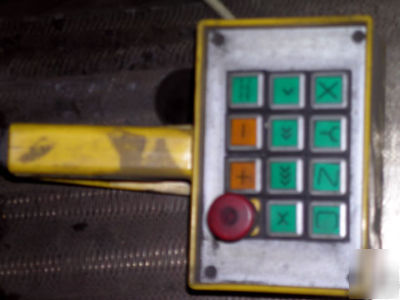

- Operation with CNC Control, Touch Screen TFT Monitor
- Transor Filter System with Automatic Backflushing MACHINE SPECIFICATIONS:
Electrode Weight - Maximum 1,543 Lbs. (700 kg)
Distance Head to Table 48.0" (1220 mm) Table
Table Surface 66.9"L x 31.6"B (1700 x 800 mm)
Work Piece Weight - Maximum 22,050 Lbs. (10,000 kg) Work Tank
Height 31.4" (800 mm) Machine Dimensions 133.8"W x 161.4"D x 159.4"H
Machine Weight 6,764 Lbs. (2800 kg) FORMAXX GENERATOR SERIES:
combinations, generator settings may be calculated and entered in the memory.
Process Optimisation Real-time acquisition with autonomous OPTIMISATION of
eroding performance and surface quaility. Automatic adjustment of
parameters to the worked surface (SPE)
Ignition Voltages 100, 150, 200, 250 Volts
Maximum Current 2 x 30 A Extendable to 1000 A
Generator (2 Channels) 60 A/120 A
Connected Rating 6 kVA, 12 kVA
Power Unit (3) Pieces Each 160 Amp Each
Total Connected Output of the Eroding Unit
Machine with CNC Control Unit, Generator and Filter Unit
High-power, low-inertia DC motors drive the axis slides and working head via
ball-screw spindles and pre-clamped spindle nuts. Precise bearing governors
allow rapid and sensitive stabilisation of eroding gaps ranging from large to very small.
In combination with the rigid structure, this drive system is the foundation
for outstanding eroding results in the roughing-down and fine-finishing area (erosion polishing).
Direct-measuring linear measuring bars prevent pitch and transmission errors,
thus ensuring high positional accuracy. Resolution from 0.001 mm to 0.0001mm
The requirement for good accessibility and automation is fulfilled to a
considerable degree by the elevating holder, which can be positioned to allow
for the height of the workpiece. Completely free access to the workpiece is
available from all sides. This constructional design facilitates automated
loading, unloading, and automatic lifting front door. Monitoring
Trouble-free operation is dependent upon a range of monitoring devices.
- A height detector monitors maintenance of the set height
- Temperature monitors protect the machine from possible overheating of the dielectric - A safety cut-out in the Z-Axis disconnects the working voltage before the
electrode rises above the set dielectric level, dependably ensuring that
the dielectric does not ignite
Thorough rinsing is important for trouble-free operation. The working head is
fitted with several connection points. Suction or pressure-rinsing can be
selected. Automatic intermittent rinsing operates on all the connections.
A variety of dielectric assemblies may be linked to the machine, depending on

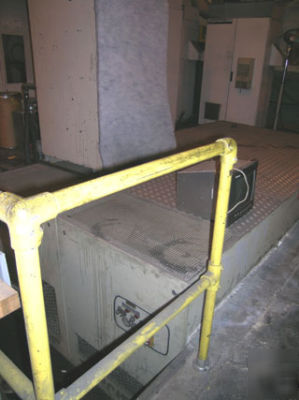

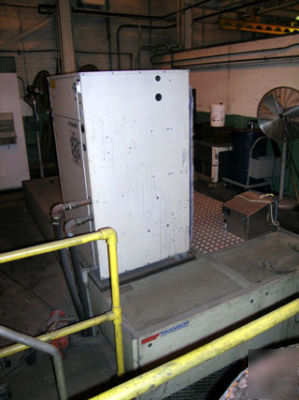

the work tasks and plant sizes. The size depends on the generator output. TRANSOR FILTER SYSTEM MODEL 24490/2-5000S WITH AUTOMATIC BACKFLUSING AND A
Filter Level (1) Micron Absolute
Filter Media Paper Wafer (Non-Consumable)
Filter Area (4) Filter Vessels with a total
Clean Oil Flow Rate 58 GPM (+/-10%)
Total Average Amperage Capacity 450 AMPS
Shop Air Pressure Required (Moisture Free) 40 PSI Air must be clean & dry
Electrics 440 Volt/60 Cycle/3 Phase
Approximate Dimensions 158"L x 79"W x 56"H
Frigadon 20 KW Refrigeration System Model FWC 170-TR, New - 2001
System Dielectric Requirements 670 Gallons
Clean Oil Storage Capacity 170 Gallons
Total Oil Capacity 1320 Gallons
Total Worktank Drain Capacity 650 Gallons
Dielectric Viscosity Requirement 27-37 SUS @ 72 Deg. F
Planetary erosion is possible as:
- 2-dimensionsal widening at a right angle to the direction of the bore (on
one side or circumferentially)
- 3-dimensional widening with:
- Stepped positioning along the bore
- Boring with overlaid planetary motion
All generator settings are programmed as index codes
- Rotate electrode through an angle (CNC parts)
- Exchange electrode are pre-installed and programmable on the screen. Operational Aids
Parallel programming while the machine is running saves setting-up time.
"Editing functions" such as program enter, program amend, add instructions,
and read/print NC program make programming the machine extremely simple.
Multimedia application with speech input, help texts and video sequences on
the TFT monitor simplify operation of the plant in all menu areas.
DEVELOPMENT II CNC CONTROL UNIT:
The 4-axis CNC Control Unit is designed for the specific requirements of
Thus the control unit makes possible a self-operating sequence of whatever
processing steps are desired to produce a complex workpiece.

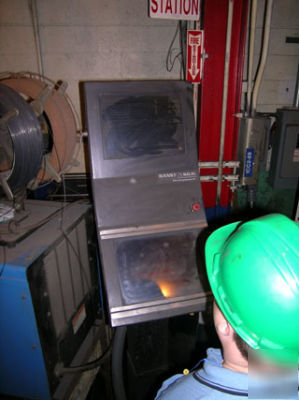

Operational and programming data is entered via a 14" VGA-TFT touch monitor
with changeable operating elements and help-text functions. Output is
displayed on a second 14" VGA-TFT monitor. Parallel programming is possible
during eroding. All information and data required for eroding is stored in
the memory and can be retrieved on screen and allocated to each programming step.
Programing is performed in DIN with G-function for axis selection, M and S
functions for machine commands, T functions for tool exchangers, and H functions for technology retrievals.
Pre-set cycles for planetary selections are integrated in the control unit.
These include circle, taper, ball, star, corner and surface, and are rotatable
in space by 90 degrees in all three axes. A co-ordinate transformation
facility allowing any desired spatial rotation in steps of 0.1 degrees over a
range of 360 degrees is available as an option.
The control unit allows "bore erosion" in all four axes individually or
linearly, two or three dimensionally, boring with superimposed planetary
automated sparking, and reverse travel limitation in all axes.
Automatic removal is programmable. Removal advance may be set to operate
logarithmically, or linearly in the planetary to the centre, or over a range of 45 degrees.
The control unit architecture incorporates real-time cycles of 1mS for the
input, processing and output or eroding processes and path positions. By
Systematic adherance to development stages, this is designed entirely in the 32-bit format.
The following menu functions are available as operational modes:
- Set-up menu with: travel function, positioning function, reference-point travel, teach-in programming, tool exchanger, rotation and C-Axis menu.
- Program menu with: program listing, re-setting, loading, storing and copying of programs.
- Automatic menu with: program retrieval, technology retrieval, single-step and sequenced step processing, erosion monitor and erosion analysis function.
- Technology menu with: loading and storage function, editing and copying function, and search function with freely selectable criteria.
- Service menu with: machine parameter editing, self-diagnosis and software optimisation functions.
Travel Measurement System Resolution in the X, Y and Z Axes is 0.001 mm, or optionally 0.0001 mm. The
C-Axis has a mechanical resolution of 1.2 million points over 360 degrees and
an indicated resolution of 0.001 degrees.
DEVELOPMENT II ENGINEERING DATA-CONTROL UNIT SUMMARY:
Control System: 4-Axis continuous-path control unit with computers having clock speeds of 266 MHz and over.
Sub-systems: Double-monitor unit fitted with 2 VGA TFT flat screen monitors for display and operation.
CAD/CAM: Free interfaces available for connection to all external CAD/CAM stations, measuring machines, robots, etc.
Screen Interface: Menu-driven with soft keys and pre-set keys on touch- sensitive monitor.
Operating Modes: Set-Up Menu, Automatic Menu, Program Menu, Diagnostic
Technology Menu, Service Menu for fault analysis and remedy by telephone.
Stored Eroding Cycles: Sphere, Taper, Star, Continuous 3-D pre-set cycle,
spatially rotatable via all (3) axes, Coordinates spatially transformable at
will (optional facility), Automatic Finishing.
Generator Functions: Automatic retrieval via NC program.
Machine Functions: Automatic retrieval via NC program.
Resolution of Position Sensor: 0.001mm, optionally 0.0001 mm
