> New (fc-20-b) hand operated toggle clamp style 205-s,b
New (fc-20-b) hand operated toggle clamp style 205-s,b

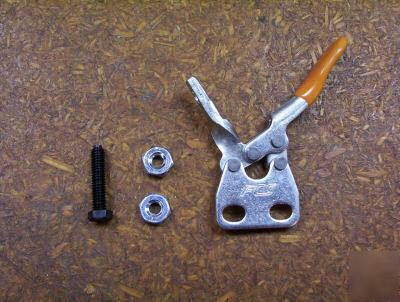

Hand operated toggle clamp (Discontinued Fargoware style FC-20-B). Hold down horizontal style, solid bar and straight base mount.
Cross Referenced to De-Staco 205-S,B.
This clamp is new in a sealed bag, made in Japan, and has a holding pressure of 60 lbs. Length of 2 3/4" and 1-1/8" tall.
Each clamp includes it's an H-10 spindle assembly. The H-10 spindle has a Nylon Hex head bolt 8-32 X 27/32"with two steel nuts.
If you need a template drawing e-mail me a question and I will send you a PDF file.
