Sterling spp KM05D(50/20) eurostream pump

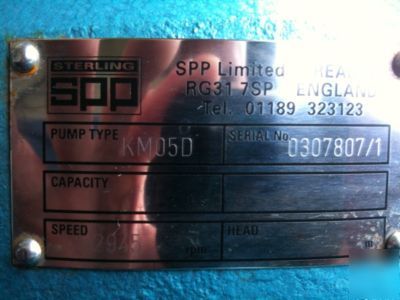

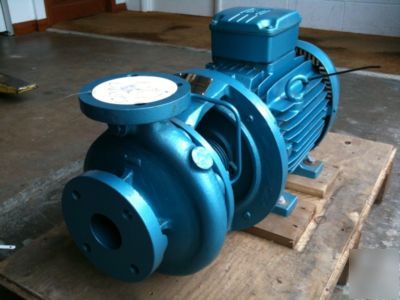

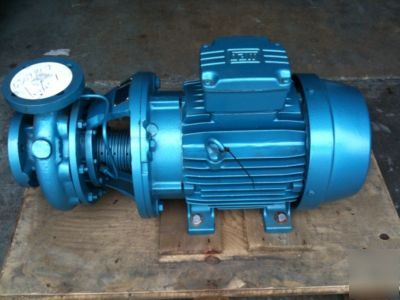

BRAND NEW STERLING SPP - MK05D(50/20).
The price is inclusive of VAT, the net cost of this pump exclusive of VAT is 510.63. This Pump usually retails for 1500.00.
Model :SPP - KM05D(50/20)Flow (m /h) Head (m) Eff. (%) Power (kW) Speed (RPM)55 43 68.5 9.41 2945Liquid Temp. ( C) Density (kg/m ) Visc. (cSt)Water 20 998.2 1.01Dia. (mm)189.1
Technical Information:Pump Model :- Horizontal Single stage EUROSTREAM KM05D (Alternative Name : 50/20)
CASINGNominal Thickness : Refer to Works mmCorrosion Allow ance : Refer to Works mmMax. working Pressure - Cast Iron : 16.2 bar(g)Maximum Flange Rating : PN16Normal Flange Drilling : PN16 F/FMaximum Physical Flange Drilling : PN16Minimum Physical Flange Drilling : PN10Maximum Hydrostatic Test Pressure : 21.3 bar(g)Normal Hydrostatic Test Pressure : 1.5 Times actual max. w orking pressure
IMPELLERType : Single Entry, closed, centrifugalMaximum Diameter : 214 mmMinimum Diameter : 165 mmEye Diameter : 85 mmNumber of Vanes : 6Balancing Method : Back VanesInertia w ith entrained liquid - C.I : 0.002 kg.m2Inertia w ith entrained liquid - Bronze : 0.0024 kg.m2Maximum Sphere Dia. of Solids Passed : 1.27 mmMaximum Speed - Cast Iron : 3500 rpmMaximum Speed - Bronze : 3500 rpmPeripheral Speed 29.16 m/s
SHAFTPower to Speed Limit Ratio - High Tensile Steel : 0.011724 kW/rpmPower to Speed Limit Ratio - Stainless Steel : kW/rpmCoupling Overhang : mmBearing Span : mmDiameter at Coupling : mmDiameter at Impeller : mmDiameter under Sleeve : mm
WEARRINGSDiametrical clearance minimum : 0.3 mmDiametrical clearance maximum : 0.4 mm
GLAND DETAILS (Component Mechanically Sealed)Maximum Speed : 3500 rpmMaximum Working Temperature : 130 deg CMaximum Suction Pressure : 8 bar(g)Normal Seal Manufacturer : Burgmann or EquivalentSeal Type : or EquivalentStationary Face Material : CeramicRotating Face Material : CarbonElastomer Material : EPTMSpring Material : Stainless SteelShaft Sleeve Diameter : 32mm
