New #2DVQT electro arc 10 kva tap disintegrator ( 2006)

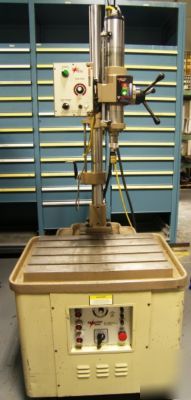

Preowned 10 KVA ELECTRO ARC Tap Disintegrator, Model: 2DVQT S/N 14506 (New 2006)
Tap diameter removed in a single pass
Drills, studs, and bolts removed in a single pass
Maximum distance from work surface to bottom of
Maximum distance from head to floor
Vertical Column (hardchrome plated):
(2) Crossarms (hardened and ground):
Head (hardchromed and ground):
Rotation around crossarm assembly
"In-the-Quill" (Q) disintegrator head with built-in LED Current Indicator and Anti-Fall
system to prevent head crashes
Automatic transistorized feed with 9" of uninterrupted motor feed, two-speed variable
feed motor, feed rate selector, adjustable automatic shut-off switch, and auto stop
Double barrel hardened and ground radial arms with linear ball bearings for 360
rotation around the column
Hard chrome plated column with 12" lift rack for raising and lowering the crossarm
Self-contained coolant system with 1/3 H.P. 1/60/120 volt pump motor and low coolant
